BC034-08-A-V-0150-L-C

Active

GCT

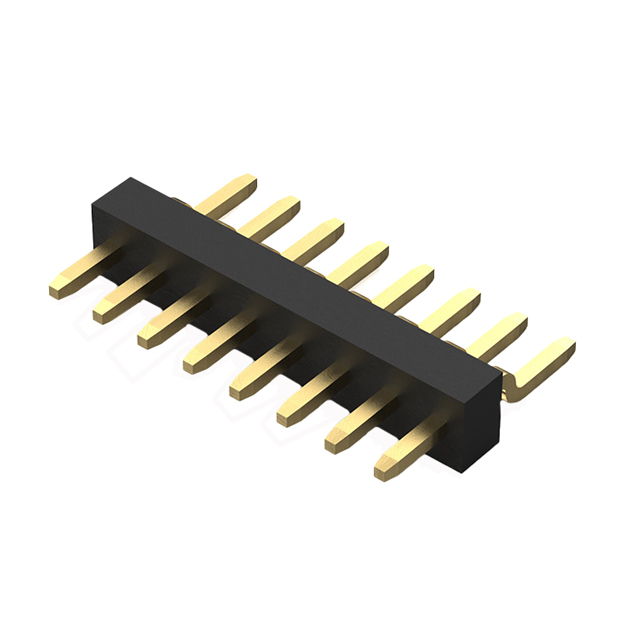

8POS 1.0MM PITCH HEADER, SIL, SM

Search across all available documentation for this part.

Active

GCT

8POS 1.0MM PITCH HEADER, SIL, SM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC034-08-A-V-0150-L-C	BC034 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	0.059 "	0.059 "
Contact Length - Mating	1.5 mm	1.5 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1 A	1 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	1.5 mm	1.5 mm
Insulation Height	0.059 "	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	8	2 - 8
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

8POS 1.0MM PITCH HEADER, SIL, SM

Part	Contact Type	Contact Finish Thickness - Mating	Fastening Type	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Number of Positions	Voltage Rating	Insulation Color	Contact Material	Contact Finish - Post	Material Flammability Rating	Contact Shape	Number of Rows	Shrouding	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Current Rating (Amps)
GCT BC034-08-A-V-0150-L-C	Male Pin	Flash	Push-Pull	Header	0.039 in	1 mm	All	Solder	8	250 VAC	Black	Phosphor Bronze	Gold	UL94 V-0	Square	1	Unshrouded	1.5 mm	0.059 "	0.059 "	1.5 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount, Right Angle	-40 °C	105 ░C	Flash	1 A
GCT BC034-03-A-V-0150-L-C	Male Pin	Flash	Push-Pull	Header	0.039 in	1 mm	All	Solder		250 VAC	Black	Phosphor Bronze	Gold	UL94 V-0	Square	1	Unshrouded	1.5 mm	0.059 "	0.059 "	1.5 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount, Right Angle	-40 °C	105 ░C	Flash	1 A
GCT BC034-02-A-V-0150-L-C	Male Pin	Flash	Push-Pull	Header	0.039 in	1 mm	All	Solder	2	250 VAC	Black	Phosphor Bronze	Gold	UL94 V-0	Square	1	Unshrouded	1.5 mm	0.059 "	0.059 "	1.5 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount, Right Angle	-40 °C	105 ░C	Flash	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 8 position 0.039" (1.00mm)
