F6025H12B-FHR

Active

Mechatronics Fan Group

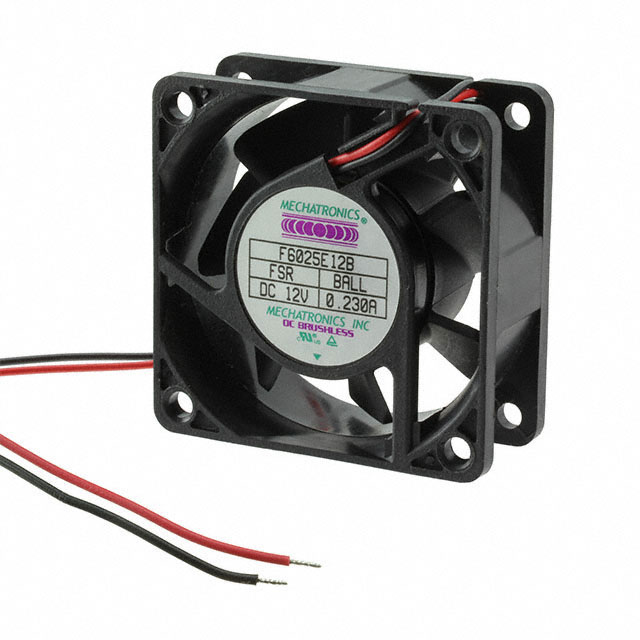

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

F6025H12B-FHR

Active

Mechatronics Fan Group

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.54

Description

General part information

F6025 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 20.0 CFM (0.560m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Specification	F6025H12B-FHR	F6025 Series

Air Flow	20 CFM	12 - 28 CFM
Air Flow	0.56 m³/min	0.336 - 0.784 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	140 mA	0.055 - 270 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Alarm Sensor, Speed Sensor (Tach), PWM Control, Auto Restart, Locked Rotor Protection, Locked Rotor Sensor, Thermistor, Conformal Coating
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	32 dB	22 - 42 dB
RPM	4200 RPM	2300 - 5800 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	0.26 in H2O	0.07 - 0.37 in H2O
Static Pressure	64.8 Pa	17.4 - 92.2 Pa
Termination	2 Wire Leads	3 Wire Leads, 4 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	5 - 24 VDC
Weight	63.05 g	63.05 - 70.76 g
Weight	0.139 lb	0.139 - 0.156 lb
Width [y]	25 mm	25 mm

Part

Air Flow

Current Rating (Amps)

Approval Agency

Material - Blade

Ingress Protection

Width [y]

Static Pressure

Features

Size / Dimension [x]

Size / Dimension [y]

Weight

Bearing Type

RPM

Voltage - Rated

Termination

Noise

Fan Type

Mechatronics Fan Group

F6025X24B1-FHR-WS-EM

28 CFM

0.784 m³/min

0.17 A

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

IP57 - Dust Protected, Waterproof

25 mm

92.2 Pa

0.37 in H2O

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

60 mm

63.05 g

0.139 lb

Ball

5800 RPM

24 VDC

3 Wire Leads

42 dB

Tubeaxial

Mechatronics Fan Group

F6025M24B1+6-FSR

17 CFM

0.476 m³/min

0.055 A

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

25 mm

32.4 Pa

0.13 in H2O

Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)

60 mm

63.05 g

0.139 lb

Ball

3300 RPM

24 VDC

4 Wire Leads

27 dB(A)

Tubeaxial

Mechatronics Fan Group

F6025H12B-RHR-EM

20 CFM

0.56 m³/min

140 mA

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

IP57 - Dust Protected, Waterproof

25 mm

64.8 Pa

0.26 in H2O

Thermal Overload Protector (TOP)

60 mm

63.05 g

0.139 lb

Ball

4200 RPM

12 VDC

2 Wire Leads

32 dB

Tubeaxial

Mechatronics Fan Group

F6025M24B1-RHR-WS

17 CFM

0.476 m³/min

0.055 A

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

25 mm

49.8 Pa

0.2 in H2O

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

60 mm

63.05 g

0.139 lb

Ball

3600 RPM

24 VDC

4 Wire Leads

28 dB

Tubeaxial

Mechatronics Fan Group

F6025H24B1-RSR

20 CFM

0.56 m³/min

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

25 mm

Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)

60 mm

63.05 g

0.139 lb

Ball

3800 RPM

24 VDC

3 Wire Leads

31 dB(A)

Tubeaxial

Mechatronics Fan Group

F6025X12B1-FHR

28 CFM

0.784 m³/min

0.33 A

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

25 mm

92.2 Pa

0.37 in H2O

Speed Sensor (Tach), Thermal Overload Protector (TOP)

60 mm

63.05 g

0.139 lb

Ball

5800 RPM

12 VDC

3 Wire Leads

42 dB

Tubeaxial

Mechatronics Fan Group

F6025H12B-FSR

20 CFM

0.56 m³/min

140 mA

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

25 mm

Auto Restart, Locked Rotor Protection

60 mm

63.05 g

0.139 lb

Ball

3800 RPM

12 VDC

2 Wire Leads

31 dB(A)

Tubeaxial

Mechatronics Fan Group

F6025E24B-RHR

24 CFM

0.672 mł/min

125 mA

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

25 mm

79.7 Pa

0.32 in H2O

Thermal Overload Protector (TOP)

60 mm

63.05 g

0.139 lb

Ball

5000 RPM

24 VDC

2 Wire Leads

37 dB

Tubeaxial

Mechatronics Fan Group

F6025E12B1-FSR

24 CFM

0.672 mł/min

0.23 A

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

25 mm

57.3 Pa

0.23 in H2O

Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)

60 mm

63.05 g

0.139 lb

Ball

4600 RPM

12 VDC

3 Wire Leads

36 dB

Tubeaxial

Mechatronics Fan Group

F6025X12B2-RHR-WS

28 CFM

0.784 m³/min

0.33 A

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

25 mm

92.2 Pa

0.37 in H2O

Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP)

60 mm

63.05 g

0.139 lb

Ball

5800 RPM

12 VDC

4 Wire Leads

42 dB

Tubeaxial

Part	Air Flow	Air Flow	Current Rating (Amps)	Approval Agency	Material - Blade	Ingress Protection	Width [y]	Static Pressure	Static Pressure	Features	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Bearing Type	RPM	Voltage - Rated	Termination	Noise	Fan Type
Mechatronics Fan Group F6025X24B1-FHR-WS-EM	28 CFM	0.784 m³/min	0.17 A	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	IP57 - Dust Protected, Waterproof	25 mm	92.2 Pa	0.37 in H2O	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	60 mm	60 mm	63.05 g	0.139 lb	Ball	5800 RPM	24 VDC	3 Wire Leads	42 dB	Tubeaxial
Mechatronics Fan Group F6025M24B1+6-FSR	17 CFM	0.476 m³/min	0.055 A	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		25 mm	32.4 Pa	0.13 in H2O	Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	60 mm	60 mm	63.05 g	0.139 lb	Ball	3300 RPM	24 VDC	4 Wire Leads	27 dB(A)	Tubeaxial
Mechatronics Fan Group F6025H12B-RHR-EM	20 CFM	0.56 m³/min	140 mA	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	IP57 - Dust Protected, Waterproof	25 mm	64.8 Pa	0.26 in H2O	Thermal Overload Protector (TOP)	60 mm	60 mm	63.05 g	0.139 lb	Ball	4200 RPM	12 VDC	2 Wire Leads	32 dB	Tubeaxial
Mechatronics Fan Group F6025M24B1-RHR-WS	17 CFM	0.476 m³/min	0.055 A	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		25 mm	49.8 Pa	0.2 in H2O	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	60 mm	60 mm	63.05 g	0.139 lb	Ball	3600 RPM	24 VDC	4 Wire Leads	28 dB	Tubeaxial
Mechatronics Fan Group F6025H24B1-RSR	20 CFM	0.56 m³/min		CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		25 mm			Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)	60 mm	60 mm	63.05 g	0.139 lb	Ball	3800 RPM	24 VDC	3 Wire Leads	31 dB(A)	Tubeaxial
Mechatronics Fan Group F6025X12B1-FHR	28 CFM	0.784 m³/min	0.33 A	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		25 mm	92.2 Pa	0.37 in H2O	Speed Sensor (Tach), Thermal Overload Protector (TOP)	60 mm	60 mm	63.05 g	0.139 lb	Ball	5800 RPM	12 VDC	3 Wire Leads	42 dB	Tubeaxial
Mechatronics Fan Group F6025H12B-FSR	20 CFM	0.56 m³/min	140 mA	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		25 mm			Auto Restart, Locked Rotor Protection	60 mm	60 mm	63.05 g	0.139 lb	Ball	3800 RPM	12 VDC	2 Wire Leads	31 dB(A)	Tubeaxial
Mechatronics Fan Group F6025E24B-RHR	24 CFM	0.672 mł/min	125 mA	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		25 mm	79.7 Pa	0.32 in H2O	Thermal Overload Protector (TOP)	60 mm	60 mm	63.05 g	0.139 lb	Ball	5000 RPM	24 VDC	2 Wire Leads	37 dB	Tubeaxial
Mechatronics Fan Group F6025E12B1-FSR	24 CFM	0.672 mł/min	0.23 A	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		25 mm	57.3 Pa	0.23 in H2O	Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)	60 mm	60 mm	63.05 g	0.139 lb	Ball	4600 RPM	12 VDC	3 Wire Leads	36 dB	Tubeaxial
Mechatronics Fan Group F6025X12B2-RHR-WS	28 CFM	0.784 m³/min	0.33 A	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		25 mm	92.2 Pa	0.37 in H2O	Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP)	60 mm	60 mm	63.05 g	0.139 lb	Ball	5800 RPM	12 VDC	4 Wire Leads	42 dB	Tubeaxial
