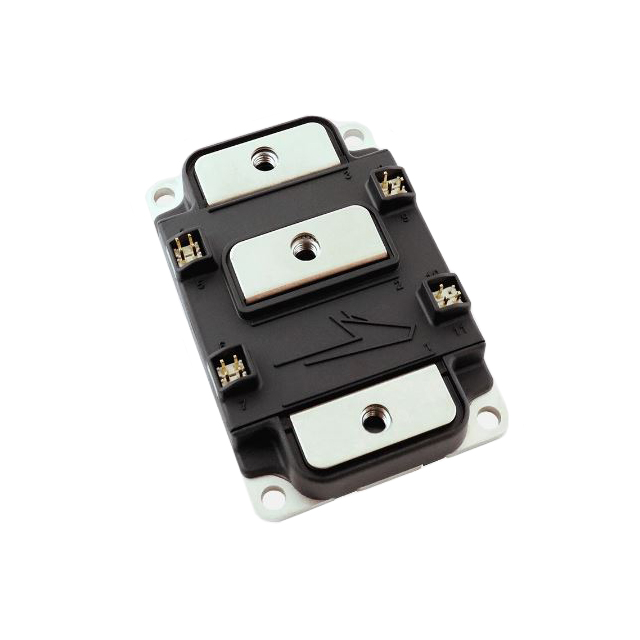

EAB450M12XM3

Active

Wolfspeed

TRANS MOSFET N-CH SIC 1.2KV 450A 11-PIN

Search across all available documentation for this part.

Active

Wolfspeed

TRANS MOSFET N-CH SIC 1.2KV 450A 11-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	EAB450M12XM3

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	450 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs	1330 nC
Input Capacitance (Ciss) (Max) @ Vds	38000 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Rds On (Max) @ Id, Vgs	3.7 mOhm
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6 V

TRANS MOSFET N-CH SIC 1.2KV 450A 11-PIN

Part	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Technology	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Configuration	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)
Wolfspeed EAB450M12XM3	Module	1330 nC	-40 C	175 °C	Chassis Mount	38000 pF	Silicon Carbide (SiC)	3.6 V	450 A	3.7 mOhm	2 N-Channel (Half Bridge)	1200 V	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1123.75

General part information

Mosfet Array 1200V (1.2kV) 450A (Tc) Chassis Mount
