Technical Specifications
Parameters and characteristics for this part
| Specification | ZCLNH70FDA016 |
|---|---|
| Color | White |
| Cross Section | 0.0625 in |
| Cross Section Shape | Round |
| Dash Number (Code) | -016 |
| Diameter - Inside (Maximum) | 0.625 in |
| Diameter - Inside (Nominal) | 0.614 in |
| Diameter - Outside | 0.754 in |
| Diameter - Outside (Nominal) | 0.75 in |
| Hardness (Shore A) | 70 Shore A |
| Material | Buna N (Nitrile NBR) |
| Nominal I.D. | 0.625 in |
| Operating Temperature (Max) | 121 °C |
| Operating Temperature (Min) | -40 °C |
| Width | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.36 | <1d |
CAD
3D models and CAD resources for this part
Description
General part information

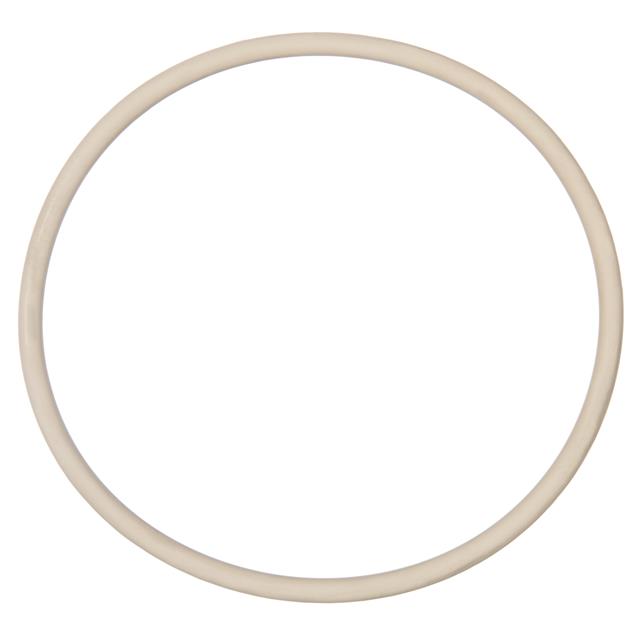

ZCLNH70FDA016
CLN RM FDA NBR ORING -016 PK25
Documents
Technical documentation and resources
No documents available
