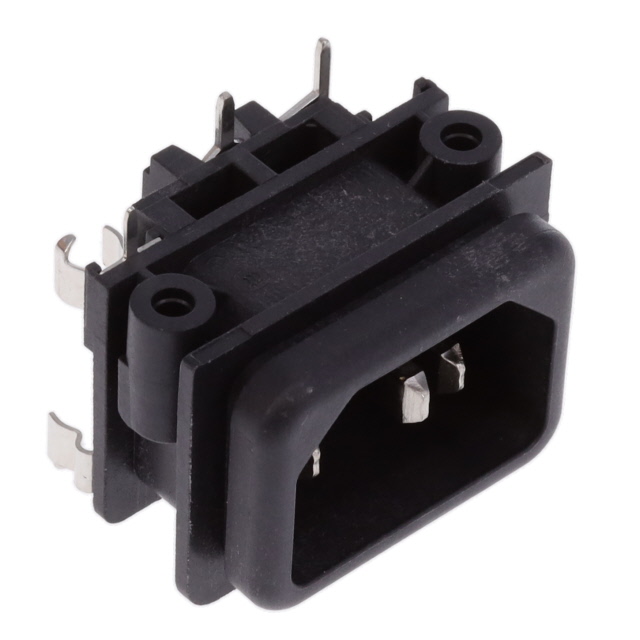

GSF1.1102.31

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GSF1.1102.31	GSF1.1102 Series

Accomodates a Fuse	True	True
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14

Part	Connector Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Connector Style	Filter Type	Ingress Protection	Current Rating - Appliance Inlet	Approval Agency
SCHURTER Inc. GSF1.1102.31	Receptacle, Male Blades - Module	UL94 V-0	250 VAC	IEC 320-C14	Unfiltered - Commercial	IP40	10 A	CCC, CSA, ENEC, UL
SCHURTER Inc. GSF1.1102.01	Receptacle, Male Blades - Module	UL94 V-0	250 VAC	IEC 320-C14	Unfiltered - Commercial	IP40	10 A	CCC, CSA, ENEC, UL
SCHURTER Inc. GSF1.1102.51	Receptacle, Male Blades - Module	UL94 V-0	250 VAC	IEC 320-C14	Unfiltered - Commercial	IP40	10 A	CCC, CSA, ENEC, UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.36

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14
