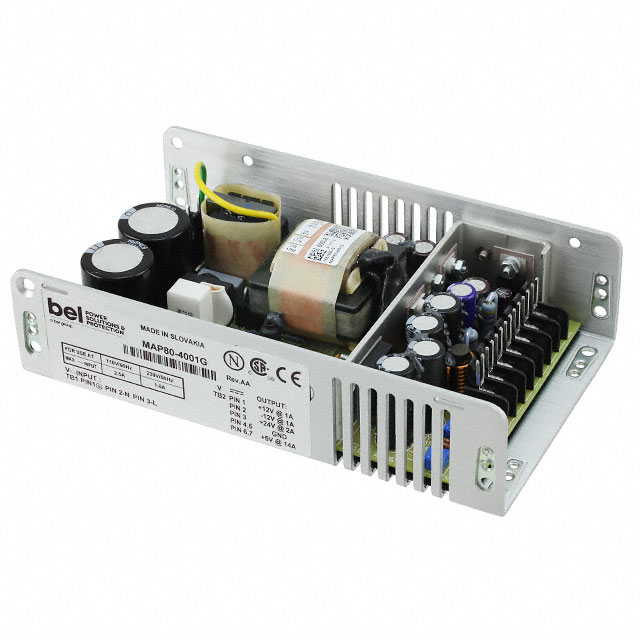

MAP80-4001G

Active

Bel Power Solutions

AC/DC POWER SUPPLY QUAD-OUT 5V/24V/-12V/12V 14A/2A/1A/1A 80W 14-PIN

Deep-Dive with AI

Search across all available documentation for this part.

MAP80-4001G

Active

Bel Power Solutions

AC/DC POWER SUPPLY QUAD-OUT 5V/24V/-12V/12V 14A/2A/1A/1A 80W 14-PIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 330.39
		5	$ 315.40
		20	$ 302.53
Digikey	Bulk	1	$ 358.75
		5	$ 347.54
		20	$ 336.33

Description

General part information

MAP80 Series

Open Frame AC DC Converters 4 Output 5V 24V -12V 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAP80-4001G	MAP80 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	14 A	3.8 - 16 A
Current - Output 2	2 A	2 - 4 A
Current - Output 4	1 A	1 - 3 A
Efficiency	80 %	80 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	80 W	80 W
Size / Dimension [x]	182.9 mm	182.9 mm
Size / Dimension [x]	7.2 in	7.2 in
Size / Dimension [y]	4.2 "	4.2 "
Size / Dimension [y]	106.7 mm	106.7 mm
Size / Dimension [z]	45.7 mm	45.7 mm
Size / Dimension [z]	1.8 "	1.8 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	2.6 kV	2.6 kV
Voltage - Output 1	5 V	5 - 24 V
Voltage - Output 2	24 V	12 - 24 V
Voltage - Output 3	-12 V	-15 - -5 V
Voltage - Output 4	12 V	-15 - 15 V

MAP80 Series

AC/DC CNVRTR 5V 12V -5V -12V 80W

Part	Mounting Type	Voltage - Output 3	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Output 4	Current - Output 1	Type	Power (Watts)	Voltage - Output 1	Applications	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 2	Operating Temperature [Max]	Approval Agency	Features	Voltage - Isolation	Number of Outputs	Current - Output 2	Voltage - Output 4
Bel Power Solutions MAP80-4000G	Chassis Mount	-5 V	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in	1 A	16 A	Open Frame	80 W	5 V	ITE (Commercial)	80 %	90 VAC	264 VAC	12 V	70 °C	CE	Adjustable Output, Universal Input	2.6 kV	4
Bel Power Solutions (MAP80-4002)	Chassis Mount	-12 V	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in	1 A	14 A	Open Frame	80 W	5 V	ITE (Commercial)	80 %	90 VAC	264 VAC	12 V	70 °C	CE	Adjustable Output, Universal Input	2.6 kV	4	4 A	12 V
Bel Power Solutions MAP80-4004	Chassis Mount	-15 V	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in	1 A	14 A	Open Frame	80 W	5 V	ITE (Commercial)	80 %	90 VAC	264 VAC	24 V	70 °C	CE	Adjustable Output, Universal Input	2.6 kV	4	2 A	15 V
Bel Power Solutions MAP80-1012G	Chassis Mount		45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in			Open Frame	80 W	12 V	ITE (Commercial)	80 %	90 VAC	264 VAC		70 °C	CE	Adjustable Output, Universal Input	2.6 kV	1
Bel Power Solutions MAP80-1024	Chassis Mount		45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in		3.8 A	Open Frame	80 W	24 V	ITE (Commercial)	80 %	90 VAC	264 VAC		70 °C	CE	Adjustable Output, Universal Input	2.6 kV	1
Bel Power Solutions (MAP80-4000)	Chassis Mount	-5 V	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in	1 A	16 A	Open Frame	80 W	5 V	ITE (Commercial)	80 %	90 VAC	264 VAC	12 V	70 °C	CE	Adjustable Output, Universal Input	2.6 kV	4
Bel Power Solutions MAP80-4003G	Chassis Mount	-5 V	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in	1 A	14 A	Open Frame	80 W	5 V	ITE (Commercial)	80 %	90 VAC	264 VAC	15 V	70 °C	CE	Adjustable Output, Universal Input	2.6 kV	4	4 A	-15 V
Bel Power Solutions MAP80-4001G	Chassis Mount	-12 V	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in	1 A	14 A	Open Frame	80 W	5 V	ITE (Commercial)	80 %	90 VAC	264 VAC	24 V	70 °C	CE	Adjustable Output, Universal Input	2.6 kV	4	2 A	12 V
Bel Power Solutions MAP80-1012	Chassis Mount		45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in			Open Frame	80 W	12 V	ITE (Commercial)	80 %	90 VAC	264 VAC		70 °C	CE	Adjustable Output, Universal Input	2.6 kV	1
Bel Power Solutions (MAP80-4001)	Chassis Mount	-12 V	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in	1 A	14 A	Open Frame	80 W	5 V	ITE (Commercial)	80 %	90 VAC	264 VAC	24 V	70 °C	CE	Adjustable Output, Universal Input	2.6 kV	4	2 A	12 V
