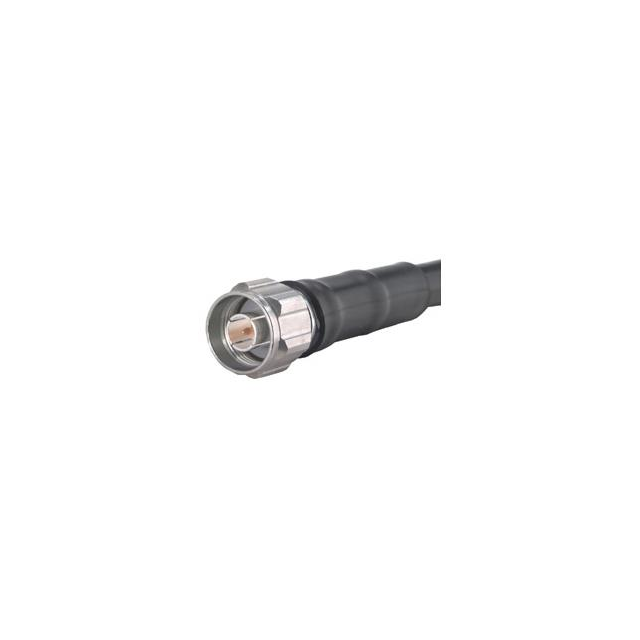

11_N-50-10-5/103_UV

Active

Huber+Suhner, Inc.

11_N-50-10-5/103_UV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_N-50-10-5/103_UV

Active

Huber+Suhner, Inc.

11_N-50-10-5/103_UV

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 21.32

Description

General part information

11_N-50 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11_N-50-10-5/103_UV	11_N-50 Series

	-	-
Body Finish	Silver	White Bronze, Nickel, Tri-Metal, Silver, Gold
Body Material	Brass	Brass, Bronze
Cable Group	-	RG-141, RG-6C, RG-214, Helical, 393, RG-225, 223, RG-142, LMR-600, RG-174, 188, 316, LMR-195, 400, LMR-400, RG-B4C
Cable Group	-	0.5 in
Center Contact Material	Bronze	Beryllium Copper, Brass, Bronze
Center Contact Plating	Gold	Gold, Silver
Connector Style	N Type	N Type
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp, Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Frequency - Max [Max]	3 GHz	3 - 18 GHz
Housing Color	Silver	Silver, Gold
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	70 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 °C
Shield Termination	Crimp	Solder, Clamp, Crimp
Voltage Rating	-	1000 VDC

11_N-50 Series

11_N-50-3-51/133_NE

Part	Body Finish	Contact Termination	Mounting Type	Mating Cycles	Impedance	Voltage Rating	Body Material	Number of Ports	Frequency - Max [Max]	Connector Type	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Center Contact Material	Shield Termination	Housing Color	Center Contact Plating	Dielectric Material	Cable Group
Huber+Suhner, Inc. 11_N-50-3-51/133_NE	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	18 GHz	Male Pin, Plug	N Type	70 °C	-55 °C	RG-141	Beryllium Copper	Solder	Silver	Gold
Huber+Suhner, Inc. 11_N-50-3-26/133_NH
Huber+Suhner, Inc. 11_N-50-6-19/12-_NE	Nickel	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	18 GHz	Male Pin, Plug	N Type	165 °C	-60 °C	RG-6C	Beryllium Copper	Clamp	Silver	Gold	Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-7-44/133_NH	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	165 °C	-65 ░C	RG-214	Brass	Crimp	Silver	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-7-56/133_UE	Tri-Metal	Crimp	Free Hanging (In-Line)	500	50 Ohms		Brass	1	11 GHz	Male Pin, Plug	N Type	165 °C	-65 ░C		Brass	Crimp	Silver	Gold
Huber+Suhner, Inc. 11_N-50-12-60/033_-E	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	85 °C	-55 °C	Helical	Bronze	Clamp	Silver	Silver	Polytetrafluoroethylene (PTFE)	0.5 in
Huber+Suhner, Inc. 11_N-50-4-9/133_NE	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	165 °C	-65 ░C		Bronze	Clamp	Silver	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-9-9/033_-E	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	85 °C	-40 °C		Bronze	Clamp	Silver	Silver	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-5-18/103_NH	Silver	Solder	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	165 °C	-65 ░C		Beryllium Copper	Solder	Silver	Gold	Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-7-74/133_UE-1	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	160 °C	-40 °C		Bronze	Clamp	Silver	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
