1410042
ActivePhoenix Contact

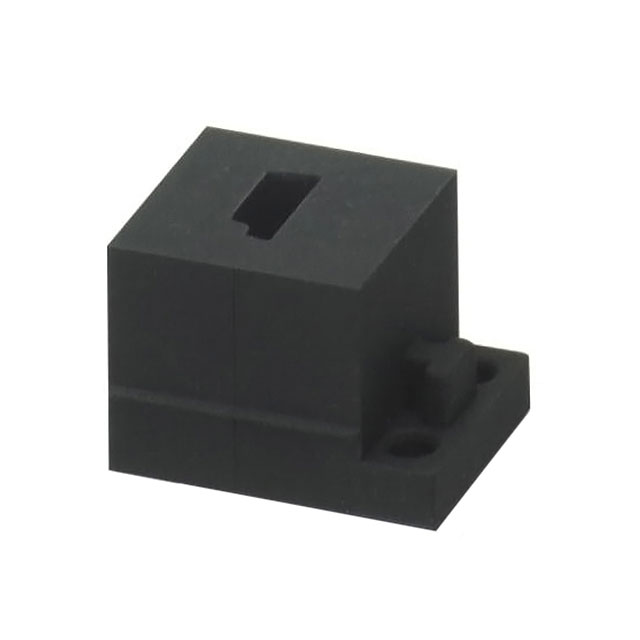

CES-SRG-BK-1ASI-L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1410042
ActivePhoenix Contact
CES-SRG-BK-1ASI-L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1410042 | CES-SRG Series |
|---|---|---|
| Accessory Type | - | Hole Plug |
| Bushing, Grommet Type | Frame Grommet | Frame Grommet |
| Color | Black | Black |
| Diameter - Inside | - | 0.079 - 17 mm |
| Diameter - Inside | - | 0.039 - 16 mm |
| Diameter - Inside | - | 0.512 - 15 mm |
| Diameter - Inside | - | 0.472 - 14 mm |
| Diameter - Inside | - | 0.433 in |
| Diameter - Inside | - | 0.472 in |
| Diameter - Inside | - | 11 mm |
| Diameter - Inside | - | 12 mm |
| Diameter - Inside | - | 12 mm |
| Diameter - Inside | - | 13 mm |
| Diameter - Inside | - | 0.236 " |
| Diameter - Inside | - | 0.276 " |
| Features | Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking | Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking |
| For Use With/Related Products | 1 ASI Cable Opening (L) | 2 ASI Cables Openings (L-R), 1 ASI Cable Opening (R), 2 Cable Openings, Wires, Cable, 4 Cable Openings, PLUSCON CES Sealing Frames, 2 ASI Cables Openings (L-L), 1 ASI Cable Opening (L) |
| Material | Nitrile Butadiene Rubber (NBR), Halogen Free | Nitrile Butadiene Rubber (NBR), Halogen Free |
CES-SRG Series
FRAME GROMMET RUBBER BLACK
| Part | Features | Material | For Use With/Related Products | Bushing, Grommet Type | Color | Diameter - Inside [Max] [diameter] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Max] [diameter] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Min] | Diameter - Inside [Max] | Diameter - Inside [Min] | Diameter - Inside [Max] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Max] [diameter] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Max] [diameter] | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0801669 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | 2 ASI Cables Openings (L-R) | Frame Grommet | Black | |||||||||||||
Phoenix Contact 0801667 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | 1 ASI Cable Opening (R) | Frame Grommet | Black | |||||||||||||
Phoenix Contact 0801657 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | 2 Cable Openings | Frame Grommet | Black | 0.197 in, 5 mm | 0.157 ", 4 mm | |||||||||||
Phoenix Contact 0801633 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | Cable, Wires | Frame Grommet | Black | 0.118 in | 0.079 in | 3 mm | 2 mm | |||||||||
Phoenix Contact 1410576 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | Cable, Wires | Frame Grommet | Black | |||||||||||||
Phoenix Contact 0801617 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | Cable, Wires | Frame Grommet | Black | 0.433 in | 0.472 in | 11 mm | 12 mm | |||||||||
Phoenix Contact 0801616 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | Cable, Wires | Frame Grommet | Black | 0.512 " | 0.472 " | 12 mm | 13 mm | |||||||||
Phoenix Contact 0801620 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | Cable, Wires | Frame Grommet | Black | 0.394 " | 0.354 " | 10 mm | 9 mm | |||||||||
Phoenix Contact 0801618 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | Cable, Wires | Frame Grommet | Black | 0.433 " | 0.394 " | 11 mm | 10 mm | |||||||||
Phoenix Contact 0801632 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Halogen Free, Nitrile Butadiene Rubber (NBR) | Cable, Wires | Frame Grommet | Black | 0.157 in | 0.118 in | 4 mm | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.69 | |
| 10 | $ 2.48 | |||
| 50 | $ 2.29 | |||
| 100 | $ 2.18 | |||
| 250 | $ 2.17 | |||
Description
General part information
CES-SRG Series
Frame Grommet Black
