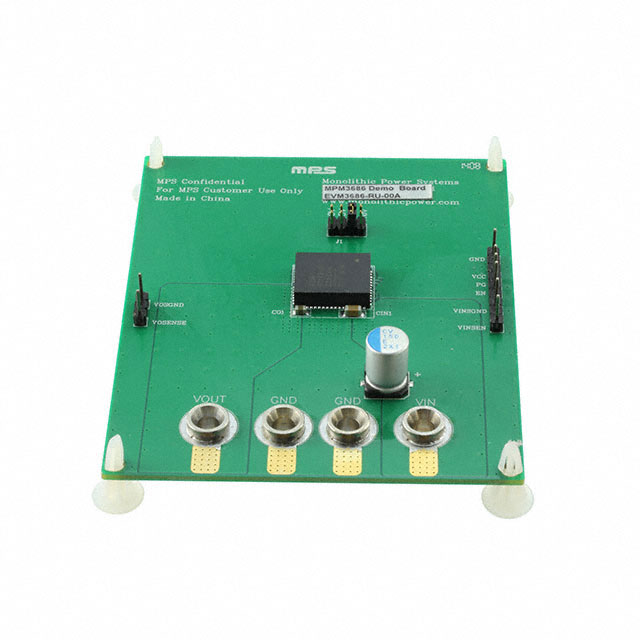

EVM3686-RU-00A
MONOLITHIC POWER SYSTEMS (MPS)
EVAL BOARD FOR MPM3686
Deep-Dive with AI
Search across all available documentation for this part.
EVM3686-RU-00A
MONOLITHIC POWER SYSTEMS (MPS)
EVAL BOARD FOR MPM3686
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVM3686-RU-00A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 20 A |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MPM3686 |
| Voltage - Input [Max] | 18 V |
| Voltage - Input [Min] | 8 V |
| Voltage - Output | 1 V, 1.8 V, 1.5 V, 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.00 | |
Description
General part information
M3686 Series
MPM3686 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
No documents available
