H1S600000006AU

Active

Unictron Technologies Corporation

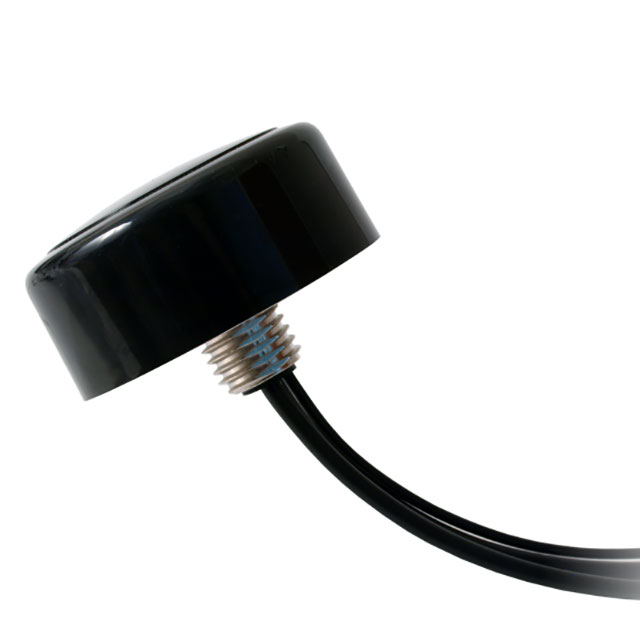

3-IN-1 COMBO EXTERNAL ANTENNA

Deep-Dive with AI

Search across all available documentation for this part.

H1S600000006AU

Active

Unictron Technologies Corporation

3-IN-1 COMBO EXTERNAL ANTENNA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H1S600000006AU

Antenna Type	Module
Applications	UMTS, 5G, Wi-Fi, GPS, GLONASS, LTE, GSM, GNSS, DCS, Galileo, Beidou, PCS
Features	300 mm
Features	Cable
Frequency (Center/Band)	761 MHz, 2.495 GHz, 1.575 GHz, 1.561 GHz, 5.8 GHz, 1.795 GHz, 2.4 GHz, 1.602 GHz, 892 MHz, 2.045 GHz, 1.92 GHz, 3.55 GHz
Frequency Group	Wide Band
Frequency Range [Max]	1.607 GHz, 2.17 GHz, 3.8 GHz, 960 MHz, 1.563 GHz, 1.576 GHz, 1.88 GHz, 824 MHz, 2.69 GHz, 1.99 GHz
Frequency Range [Min]	1920 MHz, 1.559 GHz, 698 MHz, 3.3 GHz, 1.574 GHz, 824 MHz, 2.3 GHz, 1.597 GHz, 1.85 GHz, 1.71 GHz
Gain	1.21 dBi, 1.44 dBi, 2.8 dBi, 8.14 dBi, 1.06 dBi, 7.27 dBi, 8.21 dBi, 8.72 dBi
Height (Max) [Max]	37.9 mm
Height (Max) [Max]	1.492 in
Ingress Protection	IPX7
Mounting Type	Screw Mount
Number of Bands	14
Return Loss	-8 dB, -5.5 dB, -4 dB, -6 dB, -10 dB
RF Family/Standard	Navigation, WiFi, Cellular
VSWR	2, 4.5, 2.5, 3.5, 3

H1S600000006 Series

3-IN-1 COMBO EXTERNAL ANTENNA

Part	VSWR	Height (Max) [Max]	Height (Max) [Max]	Return Loss	Frequency Group	Number of Bands	Mounting Type	Gain	Applications	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Ingress Protection	Antenna Type	Features	Features	Frequency (Center/Band)
Unictron Technologies Corporation H1S600000006AU	2, 2.5, 3, 3.5, 4.5	37.9 mm	1.492 in	-10 dB, -8 dB, -6 dB, -5.5 dB, -4 dB	Wide Band	14	Screw Mount	1.06 dBi, 1.21 dBi, 1.44 dBi, 2.8 dBi, 7.27 dBi, 8.14 dBi, 8.21 dBi, 8.72 dBi	5G, Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi	Cellular, Navigation, WiFi	1.563 GHz, 1.576 GHz, 1.607 GHz, 1.88 GHz, 1.99 GHz, 2.17 GHz, 2.69 GHz, 3.8 GHz, 824 MHz, 960 MHz	1.559 GHz, 1.574 GHz, 1.597 GHz, 1.71 GHz, 1.85 GHz, 2.3 GHz, 3.3 GHz, 698 MHz, 824 MHz, 1920 MHz	IPX7	Module	300 mm	Cable	1.561 GHz, 1.575 GHz, 1.602 GHz, 1.795 GHz, 1.92 GHz, 2.045 GHz, 2.4 GHz, 2.495 GHz, 3.55 GHz, 5.8 GHz, 761 MHz, 892 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 88.76
		10	$ 84.18

Description

General part information

H1S600000006 Series

761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz 5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi Module RF Antenna 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz 1.06dBi, 2.8dBi, 1.21dBi, 1.21dBi, 1.44dBi, 8.21dBi, 8.72dBi, 8.72dBi, 8.14dBi, 7.27dBi SMA Male Screw Mount

Documents

Technical documentation and resources

No documents available
