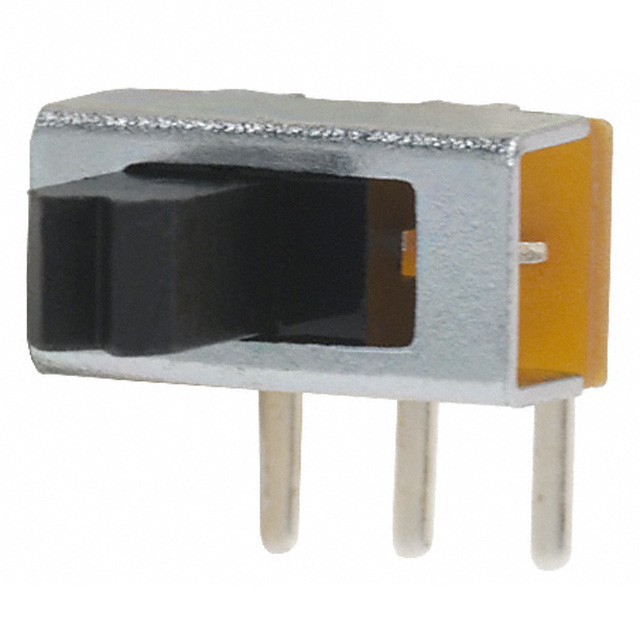

SLS121RA

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE SPDT 250MA 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE SPDT 250MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	SLS121RA

Actuator Length [x]	5 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	150 mA, 250 mA
Electrical Life	6000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Operating Force	0.25 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On
Switch Travel	3.2 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Actuator Type	Circuit	Switch Travel	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Voltage Rating - DC	Features	Operating Force	Termination Style	Mounting Type	Contact Finish	Current Rating (Amps)	Actuator Length [x]	Actuator Material	Contact Timing	Voltage Rating - AC	Mechanical Life	Contact Material
TE Connectivity Raychem Cable Protection SLS121RA	Standard	SPDT	3.2 mm	On-On	-10 °C	85 °C	6000 Cycles	12 V	Epoxy Sealed Terminals	0.25 kgf	PC Pin	Through Hole Right Angle	Silver	150 mA 250 mA	5 mm	Polybutylene Terephthalate (PBT)	Non-Shorting	125 V	10000 Steps	Copper Alloy
TE Connectivity Raychem Cable Protection SLS120	Standard	SPDT	2.69 mm	On-On	-20 C	85 °C	6000 Cycles		Epoxy Sealed Terminals	350 gf	Solder Lug		Silver	500 mA	4.9 mm	Polybutylene Terephthalate (PBT)	Non-Shorting	125 V	10000 Steps	Copper Alloy
TE Connectivity Raychem Cable Protection SLS121	Standard	SPDT	2.69 mm	On-On	-20 C	85 °C	6000 Cycles	12 V	Epoxy Sealed Terminals	350 gf	Solder Lug		Silver	150 mA 250 mA	5 mm	Polybutylene Terephthalate (PBT)	Non-Shorting	125 V	10000 Steps	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch SPDT Through Hole, Right Angle
