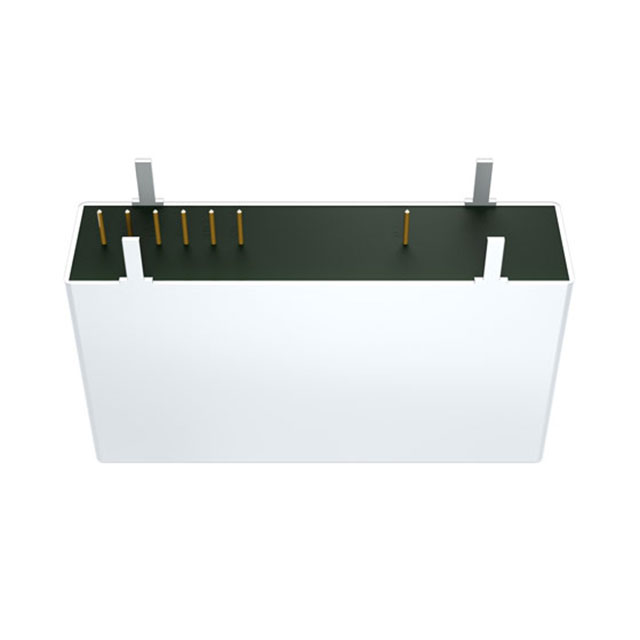

2V12-P0.8-W
ActiveULTRAVOLT / Advanced Energy
NON-ISOLATED DC/DC CONVERTERS V-SERIES DC TO HVDC CONVERTER, SINGLE OUTPUT (UNIPOLAR), +12V INPUT, +2000V HVOUT, 0.8W, THRU-HOLE MOUNT, REGULATED, FLYING LEAD
Technical Specifications
Parameters and characteristics for this part
| Specification | 2V12-P0.8-W |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, UL, cUL |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 400 µA |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 9-SIP Module |
| Power (Watts) | 0.8 W |
| Size / Dimension [x] | 46 mm |
| Size / Dimension [x] | 1.81 in |
| Size / Dimension [y] | 0.47 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 25 mm |
| Type | High Voltage - Non-Isolated Module |
| Voltage - Input (Max) [Max] | 13 V |
| Voltage - Input (Min) [Min] | 11 V |
| Voltage - Output 1 | 2000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2V12-P0.8-W
High Voltage - Non-Isolated Module DC DC Converter 1 Output 2000V 400µA 11V - 13V Input
