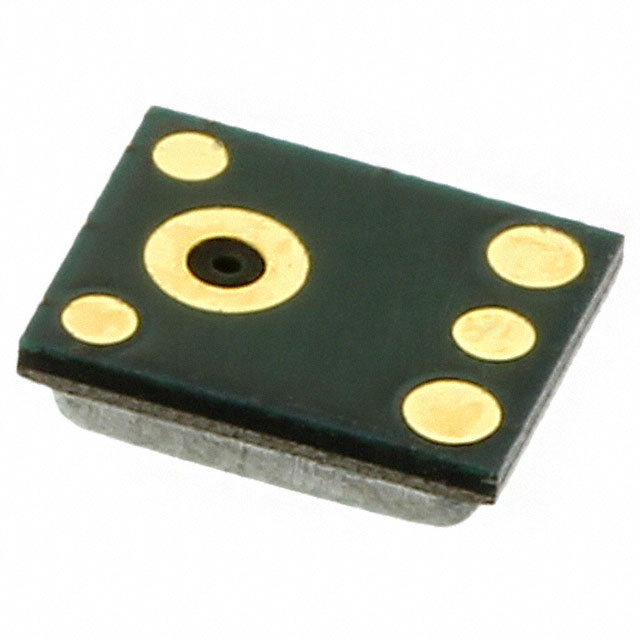

WM7132PIMSE/RV
ObsoleteCirrus Logic Inc.
MIC MEMS ANALOG OMNI -38DB
WM7132PIMSE/RV
ObsoleteCirrus Logic Inc.
MIC MEMS ANALOG OMNI -38DB
Description
General part information
WM7132PIMSE/RV
62 Hz ~ 12.5 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.7 V Omnidirectional (-38dB ±1dB @ 94dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | WM7132PIMSE/RV |
|---|---|
| Current - Supply | 240 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 12.5 kHz |
| Frequency Range (Min) | 62 Hz |
| Height (Max) | 0.047 in |
| Impedance | 55 Ohms |
| Output Type | Analog |
| Port Location | Bottom |
| S/N Ratio | 65 dB |
| Sensitivity (Nominal) | -38 dB |
| Sensitivity Tolerance | 1 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.148 in |
| Size / Dimension Width | 0.116 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 2.1 V |
| Voltage Range (Max) | 3.7 V |
| Voltage Range (Min) | 1.5 V |
