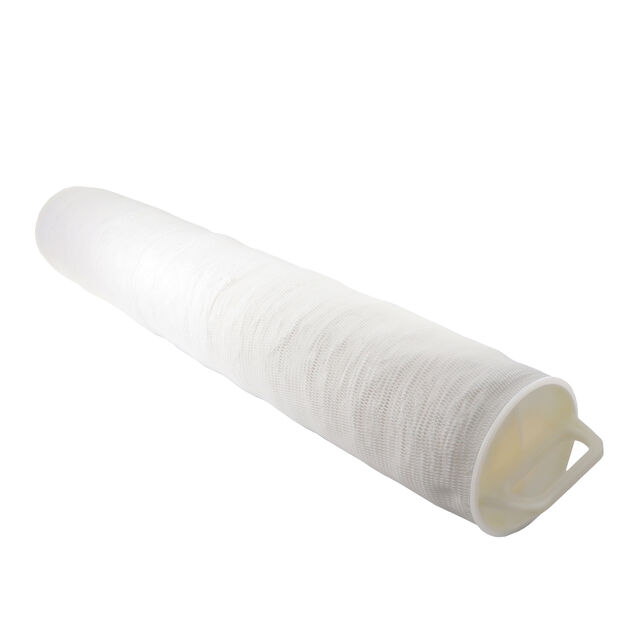

HF40PP005A01

Unknown

3M Healthcare

HIGH FLOW SERIES FILTER ELEMENT

Search across all available documentation for this part.

Unknown

3M Healthcare

HIGH FLOW SERIES FILTER ELEMENT

Technical Specifications

Parameters and characteristics commom to parts in this series

HIGH FLOW SERIES FILTER ELEMENT

Part	Particle Size	Applications	Flow Rate	Flow Rate	Pressure Range [Max] [custom]	Pressure Range [Min] [custom]	Type	Height [z]	Height [z]	Diameter [diameter]	Diameter [diameter]
3M Healthcare HF40PP005A01	5 µm	Industrial	350 GPM	1324.89 LPM	50 PSI	35 PSI	Filter Cartridge	40 "	1016 mm	165.1 mm	6.5 in
3M Healthcare HF40PP001C01	1 µm	Industrial	350 GPM	1324.89 LPM	50 PSI	35 PSI	Filter Cartridge	40 "	1016 mm	165.1 mm	6.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 392.71

General part information

Industrial Filter Cartridge 5µm (Nominal)

Technical documentation and resources
