103978-2
ActiveTE Connectivity AMP Connectors

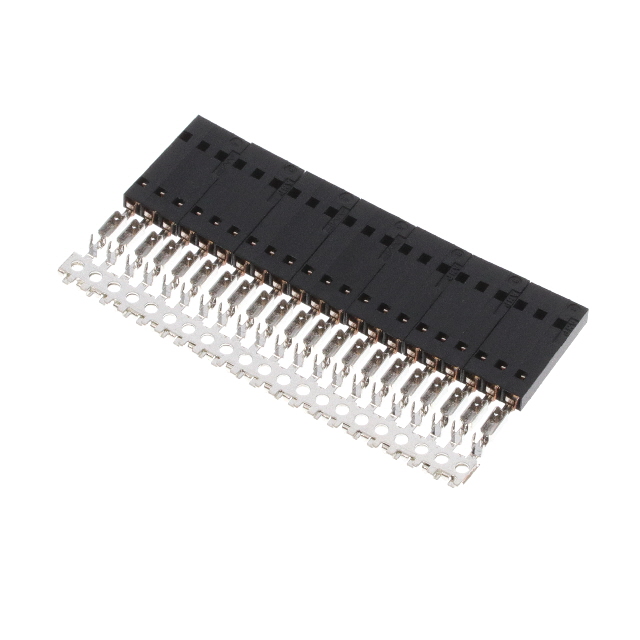

CONN RCPT 3POS IDC 26-30AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103978-2
ActiveTE Connectivity AMP Connectors
CONN RCPT 3POS IDC 26-30AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103978-2 | 103978 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Type | Female Socket | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 4 - 8 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
| Wire Type | Discrete | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.09 | |
| 72 | $ 1.54 | |||
| 144 | $ 1.47 | |||
| 504 | $ 1.34 | |||
| 1008 | $ 1.28 | |||
| 5040 | $ 1.14 | |||
103978 Series
CONN RCPT 5POS IDC 26-30AWG GOLD
| Part | Wire Type | Contact Type | Color | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Cable Termination | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103978-4 | Discrete | Female Socket | Black | 2.54 mm | 0.1 in | 15 µin | 0.38 µm | Receptacle | Gold | 26 AWG | 30 AWG | IDC | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 103978-7 | Discrete | Female Socket | Black | 2.54 mm | 0.1 in | 15 µin | 0.38 µm | Receptacle | Gold | 26 AWG | 30 AWG | IDC | Free Hanging (In-Line) | 8 |
TE Connectivity AMP Connectors 103978-2 | Discrete | Female Socket | Black | 2.54 mm | 0.1 in | 15 µin | 0.38 µm | Receptacle | Gold | 26 AWG | 30 AWG | IDC | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 103978-3 | Discrete | Female Socket | Black | 2.54 mm | 0.1 in | 15 µin | 0.38 µm | Receptacle | Gold | 26 AWG | 30 AWG | IDC | Free Hanging (In-Line) | 4 |
Description
General part information
103978 Series
3 Position Rectangular Receptacle Connector IDC Gold 26-30 AWG
