Description
General part information

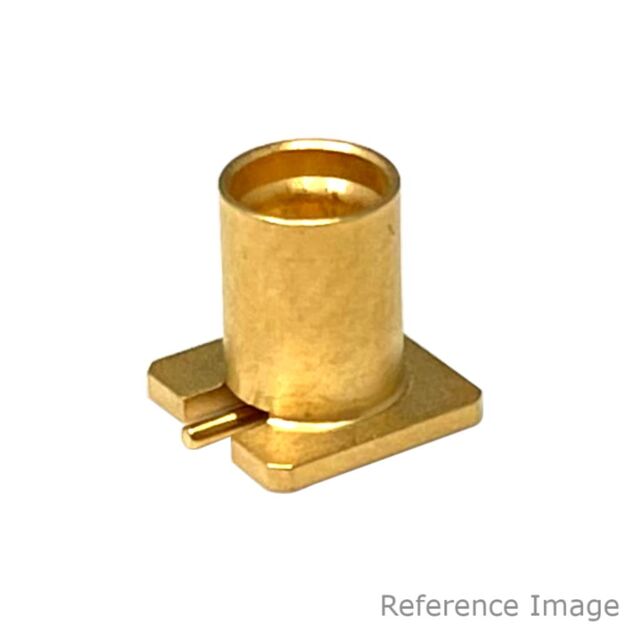

SMP-PR-SMT(LD)
SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SMP-PR-SMT(LD) |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | SMP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Features | Limited Detent |
| Frequency - Max | 40 Gbps |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 170 V |
