Description
General part information
CM-102790BSTK

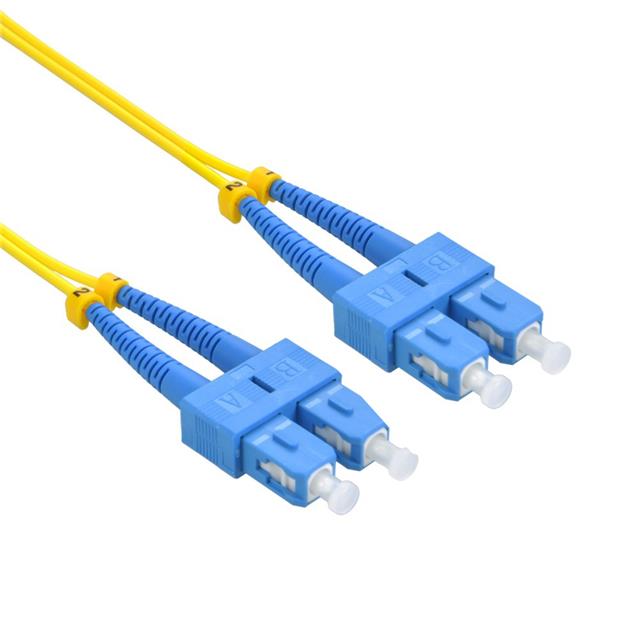

Cable Fiber Optic SC/UPC To SC/UPC 9/125 9.8' (3.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | CM-102790BSTK |
|---|---|
| 1st Connector | SC/UPC |
| 2nd Connector | SC/UPC |
| Cable Type | Fiber Patch |
| Color - Cable | Yellow |
| Color - Connectors | Blue |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Insertion Loss | 0.3 dB |
| Length - Overall | 9.8 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | OFNR |
| Return Loss | 55 dB |
| Type | Singlemode, Duplex |
