Description
General part information

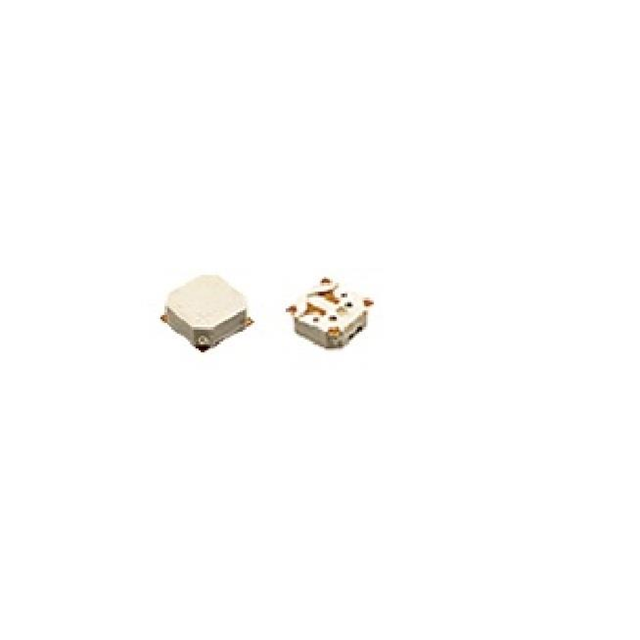

CS05MP030M12-4000
Buzzers Magnetic 3 V 110mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | CS05MP030M12-4000 |
|---|---|
| Current - Supply | 110 mA |
| Frequency | 4 kHz |
| Height - Seated (Max) | 0.118 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Side |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.197 in |
| Sound Pressure Level (SPL) | 75 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3 VDC |
| Voltage Range (Max) | 4 V |
| Voltage Range (Min) | 2 V |
