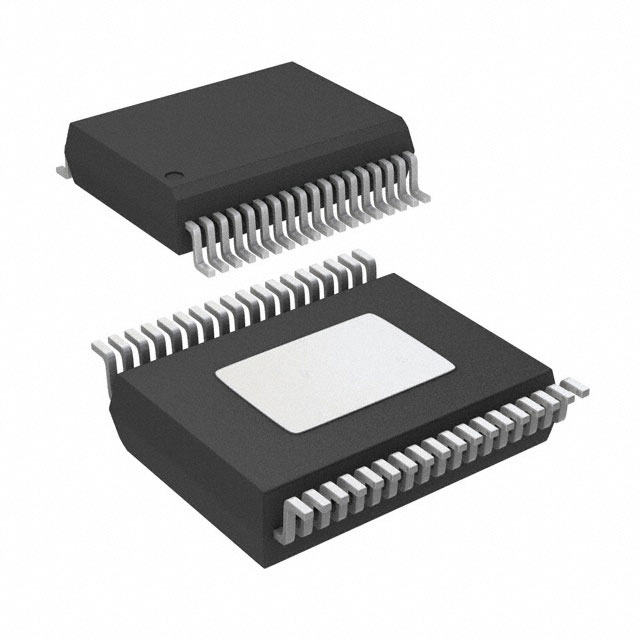

VND7012AYTR-E

Active

STMicroelectronics

IC PWR DRVR N-CHAN 1:1 PWRSSO36

Search across all available documentation for this part.

Active

STMicroelectronics

IC PWR DRVR N-CHAN 1:1 PWRSSO36

Technical Specifications

Parameters and characteristics for this part

Specification	VND7012AYTR-E

Current - Output (Max) [Max]	60 A
Fault Protection	Open Load Detect, Current Limiting (Fixed), Over Temperature, UVLO, Over Voltage
Features	Status Flag
Grade	Automotive
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	0.295 in
Package / Case	36-PowerBFSOP
Package / Case [x]	7.5 mm
Qualification	AEC-Q100
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	12 mOhm
Supplier Device Package	PowerSSO-36 EPD
Switch Type	General Purpose
Voltage - Load [Max]	28 V
Voltage - Load [Min]	4 V
Voltage - Supply (Vcc/Vdd)	False

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC PWR DRVR N-CHAN 1:1 PWRSSO36

Part	Qualification	Switch Type	Current - Output (Max) [Max]	Interface	Supplier Device Package	Number of Outputs	Rds On (Typ)	Mounting Type	Package / Case	Package / Case [x]	Package / Case	Output Type	Output Configuration	Grade	Input Type	Ratio - Input:Output [custom]	Voltage - Load [Min]	Voltage - Load [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Voltage - Supply (Vcc/Vdd)
STMicroelectronics VND7012AYTR-E	AEC-Q100	General Purpose	60 A	On/Off	PowerSSO-36 EPD	2	12 mOhm	Surface Mount	0.295 in	7.5 mm	36-PowerBFSOP	N-Channel	High Side	Automotive	Non-Inverting	1:1	4 V	28 V	Status Flag	150 °C	-40 °C	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO

General part information

Power Switch/Driver 1:1 N-Channel 60A PowerSSO-36 EPD
