Description
General part information
RG58LSZH-NFBH-QM(QTY:1m)

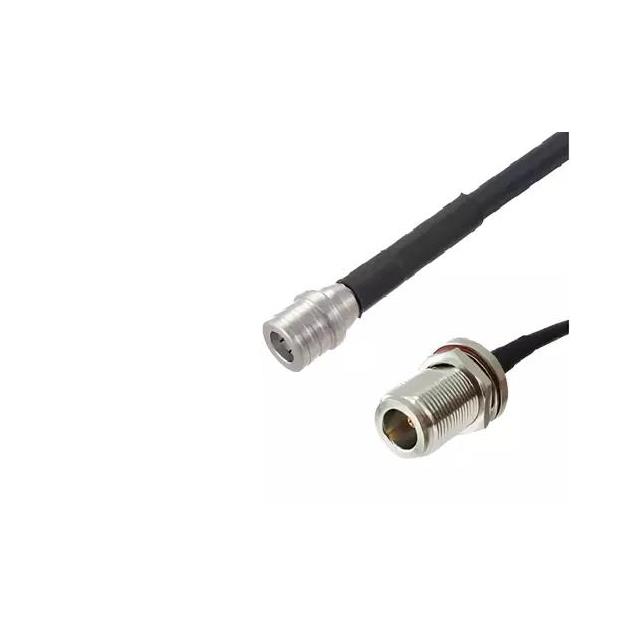

Cable Assembly Coaxial N-Type to QMA RG-58 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG58LSZH-NFBH-QM(QTY:1m) |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | QMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58 |
| Length | 39.4 in |
| Style | N-Type, QMA |
