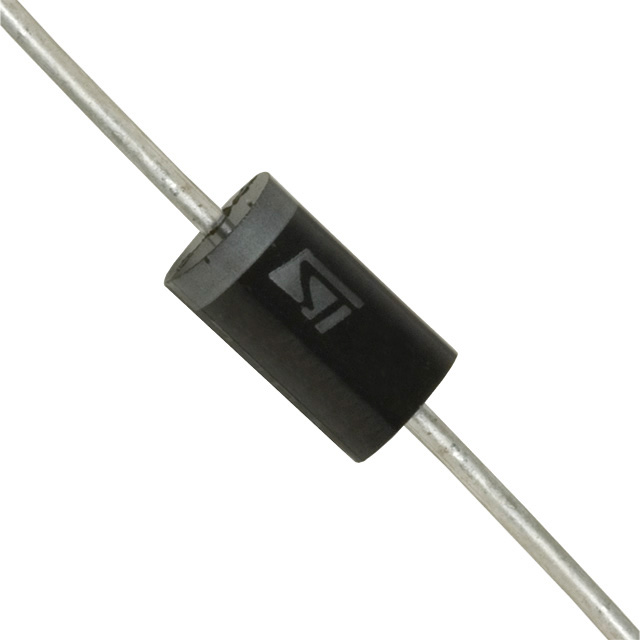

1.5KE120ARL
ActiveSTMicroelectronics
TVS DIODE 102VWM 212VC DO201
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.5KE120ARL
ActiveSTMicroelectronics
TVS DIODE 102VWM 212VC DO201
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.5KE120ARL |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 1000 pF |
| Current - Peak Pulse (10/1000µs) | 47 A |
| Mounting Type | Through Hole |
| Package / Case | Axial, DO-27, DO-201AA |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | DO-201 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 114 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 212 V |
| Voltage - Reverse Standoff (Typ) | 102 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1.5KE120 Series
TVS DIODE 102VWM 212VC DO201
| Part | Capacitance @ Frequency | Package / Case | Mounting Type | Type | Voltage - Clamping (Max) @ Ipp [Max] | Supplier Device Package | Applications | Unidirectional Channels [custom] | Voltage - Breakdown (Min) [Min] | Power - Peak Pulse | Power - Peak Pulse | Voltage - Reverse Standoff (Typ) | Current - Peak Pulse (10/1000µs) | Power Line Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 1.5KE120ARL | 1000 pF | Axial, DO-201AA, DO-27 | Through Hole | Zener | 212 V | DO-201 | General Purpose | 1 | 114 V | 1.5 kW | 1500 W | 102 V | 47 A |
Description
General part information
1.5KE120 Series
212V Clamp 47A (8/20µs) Ipp Tvs Diode Through Hole DO-201
