L1C1-4080000000000

Active
Lumileds

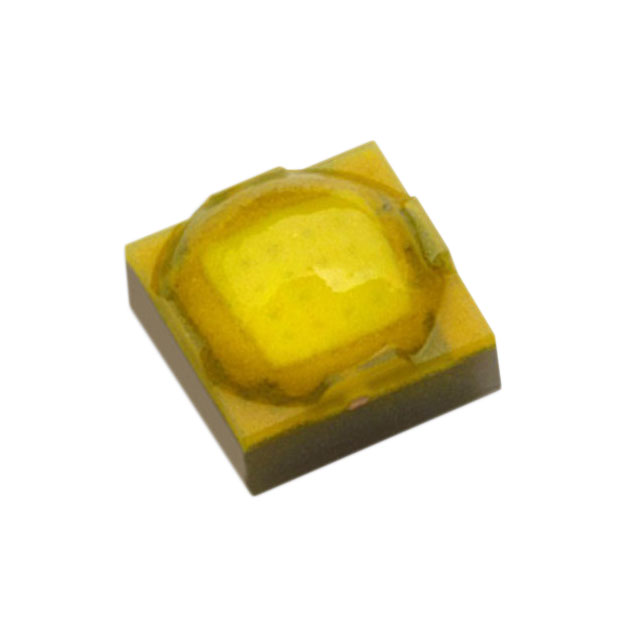

LED UNI-COLOR WHITE 113LM 4000K CHIP LED 3-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLUXEON C Color Line BriefDatasheet+1
L1C1-4080000000000 - L1C1-LUXEON_WHITE

L1C1-4080000000000

Active
Lumileds

LED UNI-COLOR WHITE 113LM 4000K CHIP LED 3-PIN SMD T/R

Deep-Dive with AI

DocumentsLUXEON C Color Line BriefDatasheet+1

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationL1C1-4080000000000L1C1 Series
CCT (K)4000 K2200 - 6500 K
ColorNeutral, WhiteWhite, Warm, Blue, Cool, Green, Neutral
CRI (Color Rendering Index)8070 - 90
Current - Max [Max]1.225 A1.05 - 1.225 A
Current - Test350 mA350 mA
Flux @ 85°C, Current - Test116 lm82 - 119 lm
Height - Seated (Max) [Max]1.5 mm1.5 mm
Height - Seated (Max) [Max] [z]0.059 "0.059 "
Lumens/Watt @ Current - Test121 lm/W48 - 152 lm/W
Luminous Flux @ Current/Temperature-52 - 506 lm
Luminous Flux @ Current/Temperature-140 lm
Luminous Flux @ Current/Temperature-152 lm
Mounting TypeSurface MountSurface Mount
Package / Case0707, 1919 Metric0707, 1919 Metric
Package / Case-3-SMD, No Lead, 2-SMD, No Lead
Size / Dimension [x]2 mm2 mm
Size / Dimension [x]0.079 in0.079 in
Size / Dimension [y]2 mm2 mm
Size / Dimension [y]0.079 in0.079 in
Supplier Device PackageSMDSMD
Temperature - Test-85 °C
Thermal Resistance of Package-3.5 °C/W
Thermal Resistance of Package [diameter]2.8 °C/W2.8 °C/W
Viewing Angle150 °150 - 170 °
Voltage - Forward (Vf) (Typ)2.75 V2.75 - 3.08 V
Wavelength-440 - 520 nm
Wavelength-460 - 540 nm
Wavelength-530 nm

L1C1 Series

LED UNI-COLOR WHITE 2-PIN T/R

PartVoltage - Forward (Vf) (Typ)Current - Max [Max]Lumens/Watt @ Current - TestThermal Resistance of Package [diameter]CRI (Color Rendering Index)Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]Size / Dimension [x]Height - Seated (Max) [Max]Height - Seated (Max) [Max] [z]Viewing AngleFlux @ 85°C, Current - TestColorMounting TypeCurrent - TestPackage / CaseLuminous Flux @ Current/TemperatureTemperature - TestCCT (K)Supplier Device PackageWavelength [Min]Wavelength [Max]Package / CaseLuminous Flux @ Current/Temperature [Min]Luminous Flux @ Current/Temperature [Max]Thermal Resistance of Package [custom]Wavelength
Lumileds
L1C1-3090000000000
2.75 V
1.225 A
89 lm/W
2.8 °C/W
90
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
150 °
86 lm
Warm, White
Surface Mount
350 mA
3-SMD, No Lead
Lumileds
L1C1-PCB1000000000
3.08 V
1.05 A
48 lm/W
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
161 °
Blue
Surface Mount
350 mA
2-SMD, No Lead
52 lm
85 °C
Lumileds
L1C1-6570000000000
2.75 V
1.225 A
2.8 °C/W
70
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
150 °
119 lm
Cool, White
Surface Mount
350 mA
2-SMD, No Lead
6500 K
Lumileds
L1C1-RYL1000000000
2.75 V
1.05 A
2.8 °C/W
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
165 °
Blue
Surface Mount
350 mA
506 mW
85 °C
SMD
440 nm
460 nm
0707, 1919 Metric
Lumileds
L1C1-2280000000000
2.75 V
1.225 A
88 lm/W
2.8 °C/W
80
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
150 °
85 lm
Warm, White
Surface Mount
350 mA
3-SMD, No Lead
2200 K
Lumileds
L1C1-3580000000000
2.75 V
1.225 A
112 lm/W
2.8 °C/W
80
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
150 °
108 lm
Warm, White
Surface Mount
350 mA
3-SMD, No Lead
3500 K
Lumileds
L1C1-5070000000000
2.75 V
1.225 A
122 lm/W
2.8 °C/W
70
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
150 °
117 lm
Cool, White
Surface Mount
350 mA
3-SMD, No Lead
5000 K
Lumileds
L1C1-LME1000000000
2.75 V
1.225 A
152 lm/W
2.8 °C/W
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
150 °
Green
Surface Mount
350 mA
146 lm
85 °C
SMD
0707, 1919 Metric
140 lm
152 lm
Lumileds
L1C1-4080000000000
2.75 V
1.225 A
121 lm/W
2.8 °C/W
80
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
150 °
116 lm
Neutral, White
Surface Mount
350 mA
4000 K
SMD
0707, 1919 Metric
Lumileds
L1C1-2790000000000
2.75 V
1.225 A
85 lm/W
2.8 °C/W
90
2 mm
2 mm
0.079 in
0.079 in
1.5 mm
0.059 "
150 °
82 lm
Warm, White
Surface Mount
350 mA
3-SMD, No Lead
2700 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.20
Digi-Reel® 1$ 2.20
Tape & Reel (TR) 1000$ 0.88
2000$ 0.83
5000$ 0.81
10000$ 0.80

Description

General part information

L1C1 Series

The LUXEON C Color Line is an optically advanced portfolio of Color and White LEDs. Designed for flawless color mixing, LUXEON C Color Line has one focal length for all colors, which provides consistent radiation patterns from secondary optics and maximizes optical efficiency. With low dome design, it keeps effective source size small while still improving light extraction. Designed for smooth color mixing and maximum punch, LUXEON C Color Line is the optimal LED solution for architecture, emergency vehicle lighting and horticulture lighting applications.One focal length allows flawless color mixing, maximum optical efficiency and removes halos Low dome design eliminates trade-offs between flux and source size Hot tested-removes guesswork for designers Industry’s lowest thermal resistance means greater light output and lower heatsink costs Small symmetrical 2x2mm² package enables dense packing and limits the impact of rotation during reflow
