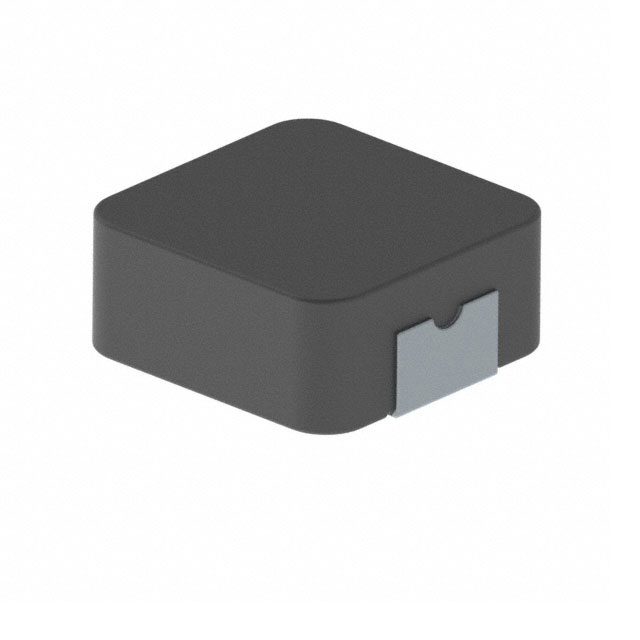

Specification	HCM1A1305V2-7R8-R

Current - Saturation (Isat)	15 A
Current Rating	7.6 A
DC Resistance (DCR) (Max)	17.3 mOhm
Frequency - Self Resonant	10 MHz
Height - Seated (Max)	0.197 in
Inductance	7.8 µH
Inductance Frequency - Test	100 kHz
Material - Core	Iron Powder
Mounting Type	Surface Mount
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension Length	0.53 in
Size / Dimension Width	0.496 in
Tolerance	20 %

HCM1AV2 Series

Power Inductors - SMD IND MP 4.7uH 3A 2 PADS SMT

...

Part	Tolerance	Material - Core	Ratings	Size / Dimension Length	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Inductance	Frequency - Self Resonant	Shielding	DC Resistance (DCR) (Max)	Inductance Frequency - Test	Current Rating	Mounting Type	Height - Seated (Max)	Current - Saturation (Isat)	Package / Case
Eaton - Electronics Division HCM1A0503V2-6R8-R	20 %	Iron Powder	AEC-Q200	0.213 in	0.205 in	155 °C	-55 °C	6.8 µH	16 MHz	Shielded	70 mOhm	100 kHz	3.3 A	Surface Mount	0.118 in	4 A	Nonstandard
Eaton - Electronics Division HCM1A1104V2-R20-R	20 %	Iron Powder	AEC-Q200	0.425 in	0.394 in	155 °C	-55 °C	200 nH	150 MHz	Shielded	0.72 mOhm	100 kHz	43 A	Surface Mount	0.157 in	60 A	Nonstandard
Eaton - Electronics Division HCM1A0805V2-4R7-R	20 %	Alloy Powder	AEC-Q200	0.319 in	0.315 in	155 °C	-55 °C	4.7 µH	15 MHz	Shielded	15.6 mOhm	100 kHz	8 A	Surface Mount	0.213 in	8 A	Nonstandard
Eaton - Electronics Division HCM1A0703V2-R47-R	20 %	Iron Powder	AEC-Q200	0.276 in	0.26 in	155 °C	-55 °C	470 nH	70 MHz	Shielded	4.14 mOhm	100 kHz	13 A	Surface Mount	0.118 in	17 A	Nonstandard
Eaton - Electronics Division HCM1A0503V2-2R2-R	20 %	Iron Powder	AEC-Q200	0.213 in	0.205 in	155 °C	-55 °C	2.2 µH	33 MHz	Shielded	23 mOhm	100 kHz	5.5 A	Surface Mount	0.118 in	6.4 A	Nonstandard
Eaton - Electronics Division HCM1A1307V2-7R8-R	20 %	Iron Powder	AEC-Q200	0.53 in	0.496 in	155 °C	-55 °C	7.8 µH	9 MHz	Shielded	11.78 mOhm	100 kHz	10 A	Surface Mount	0.256 in	16 A	Nonstandard
Eaton - Electronics Division HCM1A0703V2-R22-R	20 %	Iron Powder	AEC-Q200	0.276 in	0.26 in	155 °C	-55 °C	220 nH	150 MHz	Shielded	2.3 mOhm	100 kHz	18 A	Surface Mount	0.118 in	32 A	Nonstandard
Eaton - Electronics Division HCM1A1105V2-1R0-R	20 %	Iron Powder	AEC-Q200	0.425 in	0.394 in	155 °C	-55 °C	1 µH	44 MHz	Shielded	2.4 mOhm	100 kHz	20 A	Surface Mount	0.197 in	24 A	Nonstandard
Eaton - Electronics Division HCM1A1307V2-8R2-R	20 %	Iron Powder	AEC-Q200	0.53 in	0.496 in	155 °C	-55 °C	8.2 µH	8 MHz	Shielded	11.85 mOhm	100 kHz	10 A	Surface Mount	0.256 in	14 A	Nonstandard
Eaton - Electronics Division HCM1A1104V2-330-R	20 %	Iron Powder	AEC-Q200	0.425 in	0.394 in	155 °C	-55 °C	33 µH	5 MHz	Shielded	102 mOhm	100 kHz	3.3 A	Surface Mount	0.157 in	4.6 A	Nonstandard
