PE-53803NL
ActivePulse Electronics
FIXED IND 118UH 200MA 1.8 OHM TH
PE-53803NL
ActivePulse Electronics
FIXED IND 118UH 200MA 1.8 OHM TH
Description
General part information
PE-53803NL

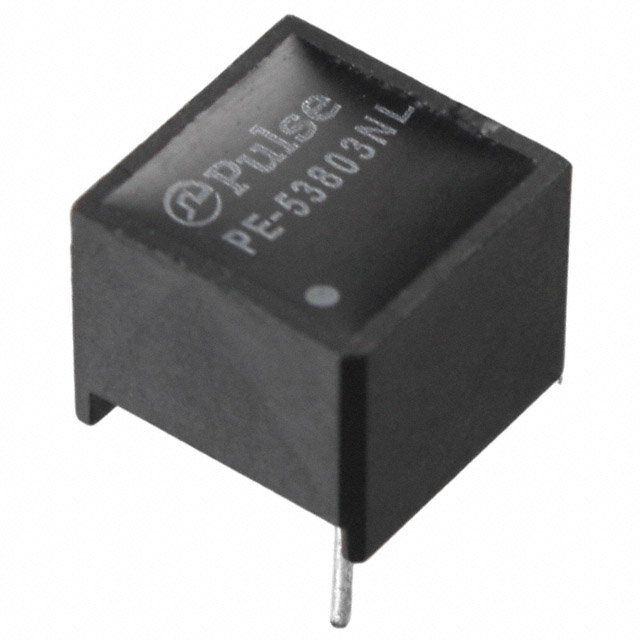

118 µH Shielded Toroidal Inductor 200 mA 1.8Ohm Radial, Vertical - Corner Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-53803NL |
|---|---|
| Current Rating | 0.2 A |
| DC Resistance (DCR) | 1.8 Ohm |
| Height - Seated (Max) | 0.31 in |
| Inductance | 118 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical - Corner Terminals, Radial |
| Shielding | Shielded |
| Size / Dimension Length | 0.36 in |
| Size / Dimension Width | 0.36 in |
| Tolerance | 20 % |
| Type | Toroidal |
