42R32-3121-150

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	42R32-3121-150

Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	31.5 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Material Flammability Rating	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Termination	Termination	Termination	Approval Agency	Mounting Type
Power Dynamics, Inc. 42R32-3121-150	UL94 V-0	Receptacle, Male Blades - Module	31.5 mm	27.5 mm	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Panel Mount, Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

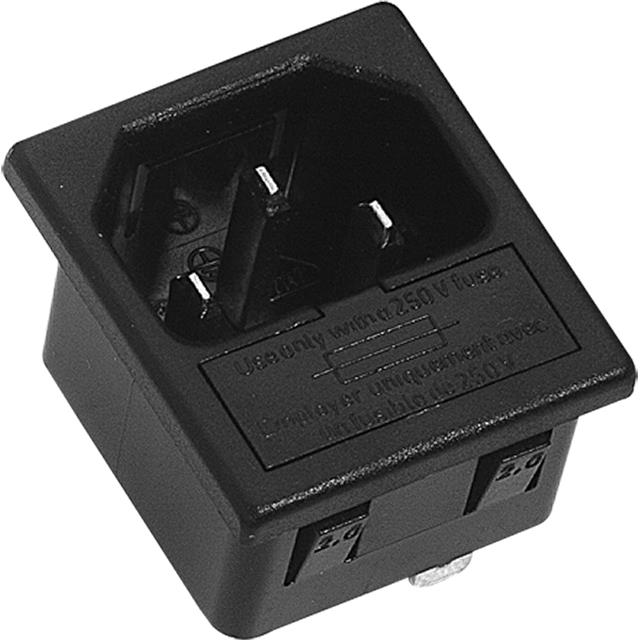

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources
