TXW-86-515-S(S)
ActiveFloyd Bell Inc

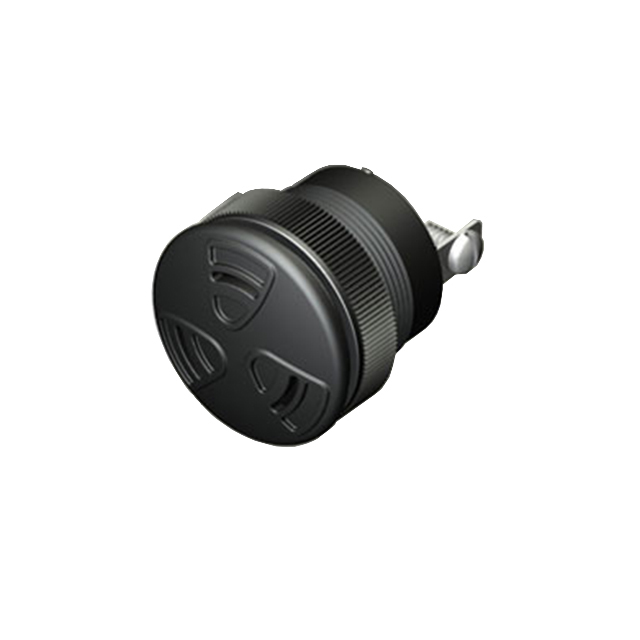

BUZZER PIEZO 33.02MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TXW-86-515-S(S)
ActiveFloyd Bell Inc
BUZZER PIEZO 33.02MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TXW-86-515-S(S) | TXW-86 Series |
|---|---|---|
| Approval Agency | UR, UL | UR, UL |
| Current - Supply [Max] | 50 mA | 50 mA |
| Current - Supply [Min] | 10 mA | 10 mA |
| Driver Circuitry | Internally Driven, Indicator | Internally Driven, Indicator |
| Frequency | 2.9 kHz | 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 1.18 in | 1.18 in |
| Height - Seated (Max) [Max] [z] | 29.97 mm | 29.97 mm |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Input Type | DC | DC |
| Operating Mode | Warble, Slow | Warble Fast, Warble, Slow |
| Port Location | Top | Top |
| Size / Dimension [diameter] | 1.3 in | 1.3 in |
| Size / Dimension [diameter] | 33.02 mm | 33.02 mm |
| Sound Pressure Level (SPL) | 103 dB | 103 dB |
| Technology | Piezo | Piezo |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Quick Connect Tab - 0.250" (6.35mm), Wire Leads |
| Voltage Range [Max] | 15 V | 15 V |
| Voltage Range [Min] | 5 VDC | 5 VDC |
TXW-86 Series
BUZZER PIEZO 33.02MM PNL MNT
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Termination | Sound Pressure Level (SPL) | Frequency | Approval Agency | Ingress Protection | Input Type | Voltage Range [Min] | Voltage Range [Max] | Technology | Port Location | Current - Supply [Max] | Current - Supply [Min] | Driver Circuitry | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Floyd Bell Inc TXW-86-515-S(F) | 1.18 in | 29.97 mm | 1.3 in | 33.02 mm | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 103 dB | 2.9 kHz | UL, UR | IP68 - Dust Tight, Waterproof | DC | 5 VDC | 15 V | Piezo | Top | 50 mA | 10 mA | Indicator, Internally Driven | Warble Fast |
Floyd Bell Inc TXW-86-515-Q(S) | 1.18 in | 29.97 mm | 1.3 in | 33.02 mm | Quick Connect Tab - 0.250" (6.35mm) | 103 dB | 2.9 kHz | UL, UR | IP68 - Dust Tight, Waterproof | DC | 5 VDC | 15 V | Piezo | Top | 50 mA | 10 mA | Indicator, Internally Driven | Warble, Slow |
Floyd Bell Inc TXW-86-515-W(S) | 1.18 in | 29.97 mm | 1.3 in | 33.02 mm | Wire Leads | 103 dB | 2.9 kHz | UL, UR | IP68 - Dust Tight, Waterproof | DC | 5 VDC | 15 V | Piezo | Top | 50 mA | 10 mA | Indicator, Internally Driven | Warble, Slow |
Floyd Bell Inc TXW-86-515-S(S) | 1.18 in | 29.97 mm | 1.3 in | 33.02 mm | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 103 dB | 2.9 kHz | UL, UR | IP68 - Dust Tight, Waterproof | DC | 5 VDC | 15 V | Piezo | Top | 50 mA | 10 mA | Indicator, Internally Driven | Warble, Slow |
Floyd Bell Inc TXW-86-515-Q(F) | 1.18 in | 29.97 mm | 1.3 in | 33.02 mm | Quick Connect Tab - 0.250" (6.35mm) | 103 dB | 2.9 kHz | UL, UR | IP68 - Dust Tight, Waterproof | DC | 5 VDC | 15 V | Piezo | Top | 50 mA | 10 mA | Indicator, Internally Driven | Warble Fast |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.51 | |
Description
General part information
TXW-86 Series
Buzzers Indicator, Internally Driven Piezo 10 ~ 50mA 2.9kHz 103dB @ 15V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
