1408393-1

Active

TE Connectivity AMP Connectors

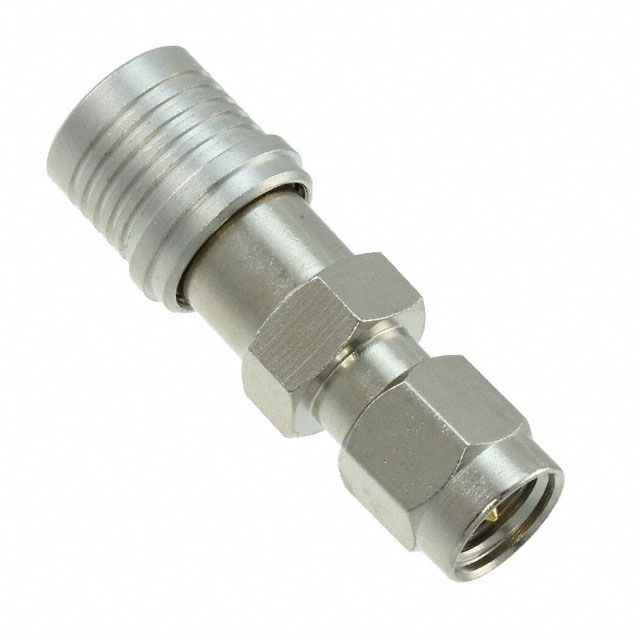

CONN ADAPT SMA PLUG TO QMA PLUG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT SMA PLUG TO QMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	1408393-1

Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	QMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT SMA PLUG TO QMA PLUG

Part	Convert To (Adapter End)	Style	Mounting Type	Center Gender	Body Finish	Dielectric Material	Impedance	Adapter Type	Center Contact Material	Frequency - Max [Max]	Conversion Type	Body Material	Center Contact Plating	Fastening Type	Convert From (Adapter End)
TE Connectivity AMP Connectors 1408393-1	Male Pin, QMA Plug	Straight	Free Hanging (In-Line)	Male to Male	Nickel	Polytetrafluoroethylene (PTFE)	50 Ohms	Plug to Plug	Beryllium Copper	6000 MHz	Between Series	Brass	Gold	Snap-On, Threaded	SMA Plug, Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To QMA Plug, Male Pin 50 Ohms
