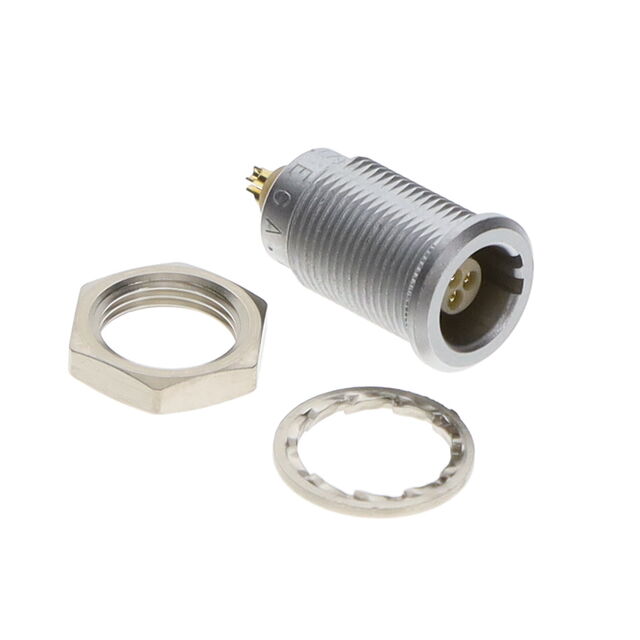

EGA.00.303.CLL

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	EGA.00.303.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	303
Shielding	Shielded

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Orientation	Shell Finish	Ingress Protection	Primary Material	Current Rating (Amps)	Shielding	Shell Size - Insert	Contact Material	Mounting Feature	Insert Material	Fastening Type	Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Contact Finish - Mating
LEMO EGA.00.303.CLL	59 Áin	1.5 Ám	Receptacle, Female Sockets	A	Chrome	IP50	Metal	3 A	Shielded	303	Bronze	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	Push-Pull	Silver	UL94 V-0	-55 °C	250 °C	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
