800-14-0OD-GR-0006F-1
ActiveCnC Tech, LLC
CORD 14AWG NEMA5-15P - IEC320 6'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 800-14-0OD-GR-0006F-1 |
|---|---|
| 1st Connector | NEMA 5-15P |
| Approval Agency Marking | UL, cUL |
| Approved Countries | United States, Canada |
| Color | Gray |
| Cord Type | SJT |
| Current Rating (Amps) | 15 A |
| Features | Hospital Grade |
| Length | 6 ft |
| Length | 1.83 m |
| Number of Conductors | 3 |
| Operating Temperature | 105 C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 18.03 | |
| 10 | $ 15.63 | |||
| 25 | $ 14.81 | |||
| 50 | $ 14.59 | |||
| 100 | $ 12.88 | |||
| 250 | $ 12.02 | |||
| 500 | $ 11.76 | |||
Description
General part information
800-14-0OD-GR-0006F-1

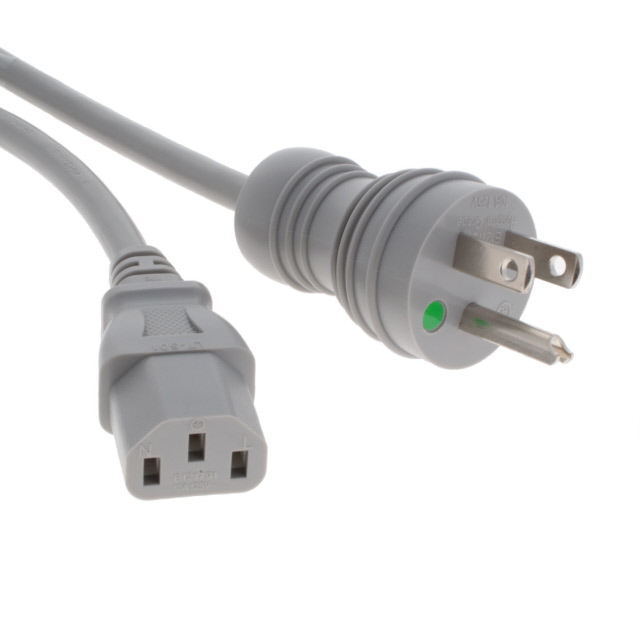

6.00' (1.83m) Power Cord Gray NEMA 5-15P To IEC 320-C13 SJT
