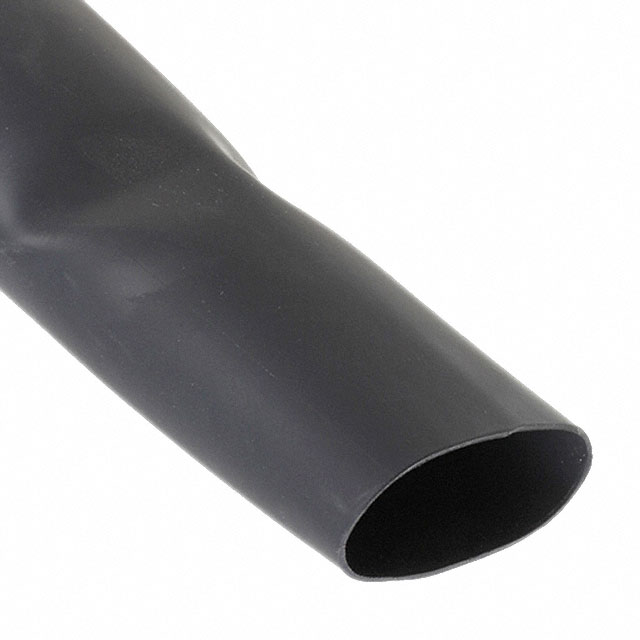

RW-200-E-1-1/2-0-SP

Unknown

TE Connectivity Raychem Cable Protection

HEATSHRINK FLUOR HW 1-1/2" 1=1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRW-200(-E) Spec Datasheet

RW-200-E-1-1/2-0-SP

Unknown

TE Connectivity Raychem Cable Protection

HEATSHRINK FLUOR HW 1-1/2" 1=1M

Deep-Dive with AI

DocumentsRW-200(-E) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RW-200-E-1-1/2-0-SP

Color	Black
Features	Abrasion Resistant, Fluid Resistant, Chemical Resistant, Solvent Resistant, Acid Resistant, Impact Resistant, Fuel Resistant
Inner Diameter - Recovered [diameter]	19.05 mm
Inner Diameter - Recovered [diameter]	0.75 "
Inner Diameter - Supplied [diameter]	38.1 mm
Inner Diameter - Supplied [diameter]	1.5 in
Length [x]	1 m
Length [x]	3.28 ft
Material	Fluoroelastomer (FKM), Irradiated
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.085 in
Recovered Wall Thickness	2.16 mm
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

RW-200 Series

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Shrinkage Ratio	Features	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection RW-200-2-0-SP	Tubing Flexible	200 °C	-40 °C	50.8 mm	2 in	Black	2 to 1	Abrasion Resistant Acid Resistant Chemical Resistant Fluid Resistant Fuel Resistant Impact Resistant Solvent Resistant	Fluoroelastomer (FKM) Irradiated	25.4 mm	1 in	100 °C	1.65 mm	0.065 in
TE Connectivity Raychem Cable Protection RW-200-E-1-1/4-0-SP	Tubing Flexible	200 °C	-55 °C	31.75 mm	1.25 in	Black	2 to 1	Abrasion Resistant Acid Resistant Chemical Resistant Fluid Resistant Fuel Resistant Impact Resistant Solvent Resistant	Fluoroelastomer (FKM) Irradiated	15.88 mm	0.625 in	100 °C	1.83 mm	0.072 in	1 m 15 m	3.28 ft 49.2 ft
TE Connectivity Raychem Cable Protection RW-200-E-1-1/2-0-SP	Tubing Flexible	200 °C	-55 °C	38.1 mm	1.5 in	Black	2 to 1	Abrasion Resistant Acid Resistant Chemical Resistant Fluid Resistant Fuel Resistant Impact Resistant Solvent Resistant	Fluoroelastomer (FKM) Irradiated	19.05 mm	0.75 "	100 °C	2.16 mm	0.085 in	1 m	3.28 ft
TE Connectivity Raychem Cable Protection RW-200-E-2-0-SP	Tubing Flexible	200 °C	-55 °C	50.8 mm	2 in	Black	2 to 1	Abrasion Resistant Acid Resistant Chemical Resistant Fluid Resistant Fuel Resistant Impact Resistant Solvent Resistant	Fluoroelastomer (FKM) Irradiated	25.4 mm	1 in	100 °C	2.8 mm	0.111 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RW-200 Series

Heat Shrink Tubing, Flexible 1.500" (38.10mm) 2 to 1 Black 3.28' (1.00m)

Documents

Technical documentation and resources

RW-200(-E) Spec

Datasheet
