FTE20-BI13AA12
ActiveEndress+Hauser

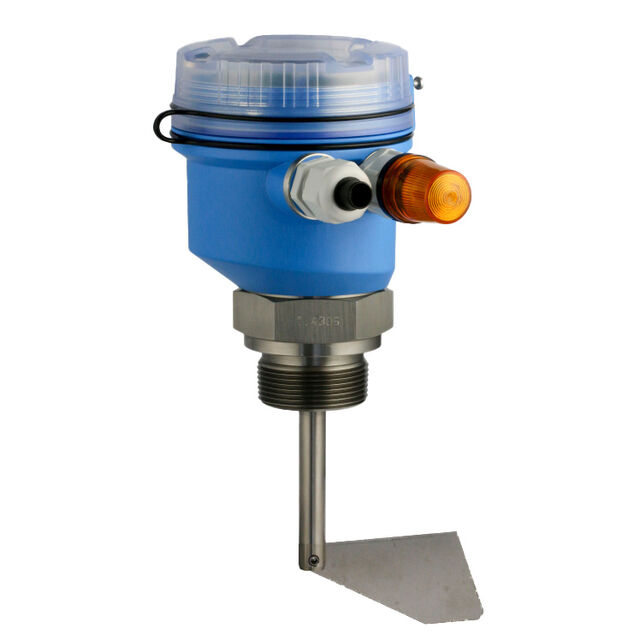

LEVEL SWITCH ROTARY PADDLE
FTE20-BI13AA12
ActiveEndress+Hauser
LEVEL SWITCH ROTARY PADDLE
Description
General part information
FTE20-BI13AA12
LEVEL SWITCH ROTARY PADDLE
Technical Specifications
Parameters and characteristics for this part
| Specification | FTE20-BI13AA12 |
|---|---|
| Current | 100 mA |
| Material - Housing & Prism | Polycarbonate |
| Mounting Type | Threaded |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | SPDT, NC, NO |
| Output Type | Switch |
| Type | Granular Solids |
| Voltage Rating (Max) | 28 V |
| Voltage Rating (Min) | 20 VAC/DC |
