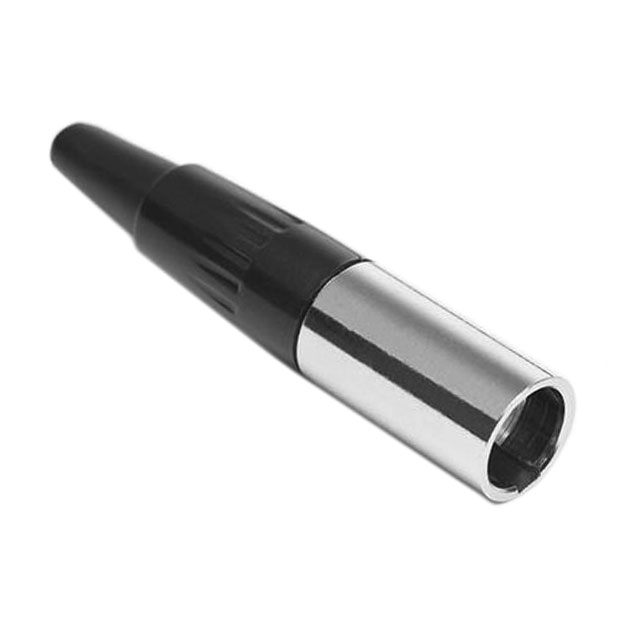

AG3M
ActiveAMPHENOL AUDIO
CONN RCPT MALE MINI XLR 3POS SLD
Deep-Dive with AI
Search across all available documentation for this part.
AG3M
ActiveAMPHENOL AUDIO
CONN RCPT MALE MINI XLR 3POS SLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AG3M |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Fastening Type | Latch Holder |
| Features | Cable Clamp, Backshell |
| Ingress Protection | IP40 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | Mini XLR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.54 | |
| 10 | $ 7.26 | |||
| 25 | $ 6.81 | |||
| 50 | $ 6.48 | |||
| 100 | $ 6.17 | |||
| 250 | $ 6.42 | |||
| 300 | $ 5.71 | |||
| 500 | $ 5.51 | |||
| 1000 | $ 5.25 | |||
Description
General part information
AG3M
3 Position Circular Connector Receptacle, Male Pins Solder Cup
