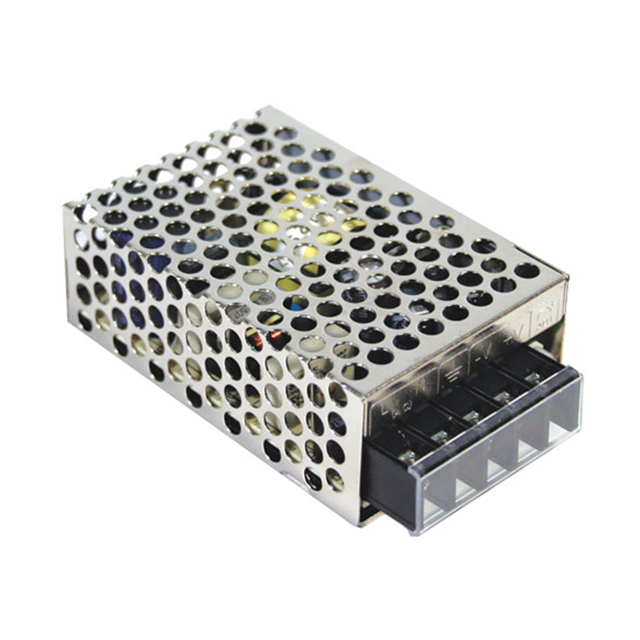

NES-15-15
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 15V 15W
NES-15-15
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 15V 15W
Description
General part information
NES-15-15
Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NES-15-15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CB, CCC |
| Current - Output 1 | 1 A |
| Efficiency | 81 % |
| Features | Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 15 W |
| Size / Dimension Height | 1.1 in |
| Size / Dimension Length | 3.07 in |
| Size / Dimension Width | 2.01 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15 V |
