HV-317446/260/SYGUYOM-L51-U1930
ActiveHarvatek Corporation

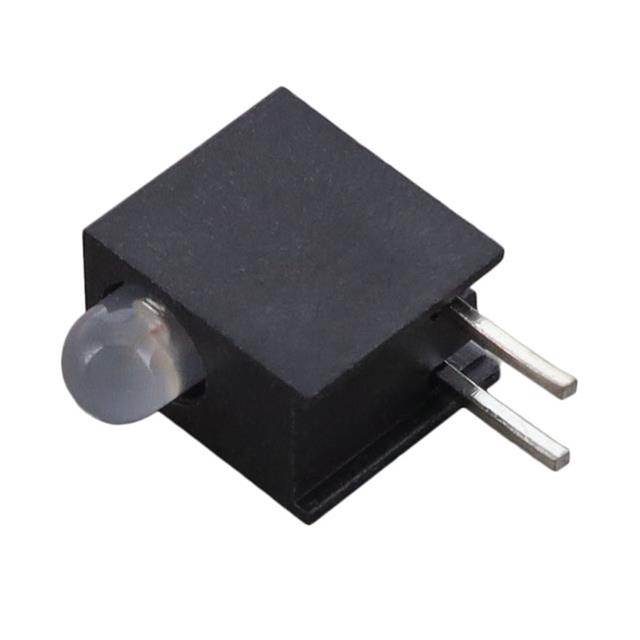

LED CBI 3MM GRN/ORNG RA
HV-317446/260/SYGUYOM-L51-U1930
ActiveHarvatek Corporation
LED CBI 3MM GRN/ORNG RA
Description
General part information
HV-317446/260/SYGUYOM-L51-U1930
LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Orange Diffused, White 2V Green, 2V Orange 20mA Green, 20mA Orange Round with Domed Top 3.00mm Dia Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | HV-317446/260/SYGUYOM-L51-U1930 |
|---|---|
| Color | Orange, Green |
| Configuration | Single |
| Current | 20 mA |
| Current (Green) | 20 mA |
| Current Colors | Orange, Green |
| Lens Diameter | 3 mm |
| Lens Style | Round, Domed Top |
| Lens Type | White, Diffused |
| Millicandela Rating ({{color}}) | 12 mcd, 10 mcd |
| Millicandela Rating (Green) | 10 mcd |
| Millicandela Rating (Orange) | 12 mcd |
| Millicandela Rating Colors | Green, Orange |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 120 ° |
| Voltage Rating - Color | Green, Orange |
| Voltage Rating (Green) | 2 V |
| Voltage Rating (Orange) | 2 V |
| Wavelength - Peak (Green) | 575 nm |
| Wavelength - Peak (Orange) | 610 nm |
| Wavelength - Peak Colors | Green, Orange |
