HGP.3S.415.CTLPV

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

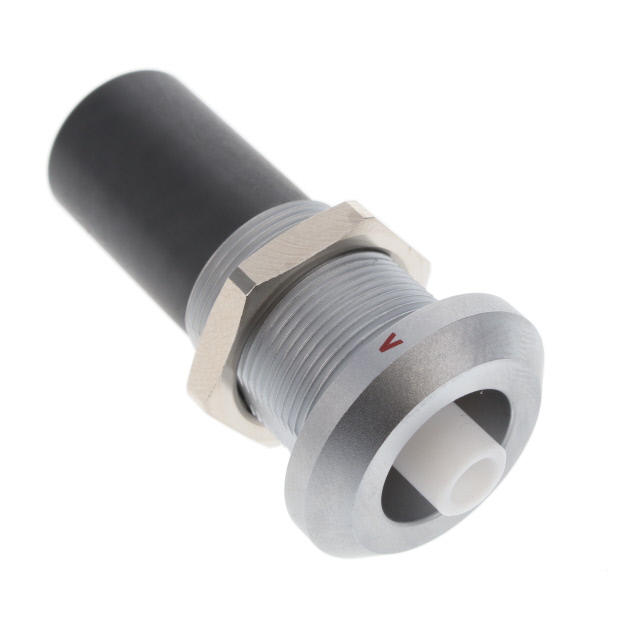

1 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	HGP.3S.415.CTLPV	HGP.3S Series

Applications	Military, Aviation	Military, Aviation
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze	Bronze, Brass
Current Rating (Amps)	8 A	8 - 18 A
Fastening Type	Push-Pull	Push-Pull
Features	Vacuumtight, Potted	Vacuumtight, Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polytetrafluoroethylene (PTFE)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	1	1 - 6
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	415	304 - 415
Shielding	Shielded	Shielded

CONN CIRC RCPT 6P GOLD SLDR CUP

Part	Insert Material	Contact Finish - Mating	Number of Positions	Contact Material	Material Flammability Rating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shell Finish	Color	Orientation	Fastening Type	Primary Material	Shielding	Features	Current Rating (Amps)	Shell Material	Mounting Feature	Applications	Connector Type
LEMO HGP.3S.306.CLLPV	Polyetheretherketone (PEEK)	Gold	6	Brass, Bronze	UL94 V-0	IP68 - Dust Tight, Waterproof	-20 C	80 C	306	Chrome	Silver	Keyed	Push-Pull	Metal	Shielded	Potted, Vacuumtight	14 A	Brass	Bulkhead - Rear Side Nut	Aviation, Military	Female Sockets, Male Pins, Receptacle
LEMO HGP.3S.415.CTLPV	Polytetrafluoroethylene (PTFE)	Gold	1	Bronze		IP68 - Dust Tight, Waterproof	-20 C	80 C	415	Chrome	Silver	Keyed	Push-Pull	Metal	Shielded	Potted, Vacuumtight	8 A	Brass	Bulkhead - Rear Side Nut	Aviation, Military	Receptacle, Female Sockets
LEMO HGP.3S.304.CLLPV	Polyetheretherketone (PEEK)	Gold	4	Brass, Bronze	UL94 V-0	IP68 - Dust Tight, Waterproof	-20 C	80 C	304	Chrome	Silver	Keyed	Push-Pull	Metal	Shielded	Potted, Vacuumtight	18 A	Brass	Bulkhead - Rear Side Nut	Aviation, Military	Female Sockets, Male Pins, Receptacle
