1-966066-1
ActiveTE Connectivity AMP Connectors

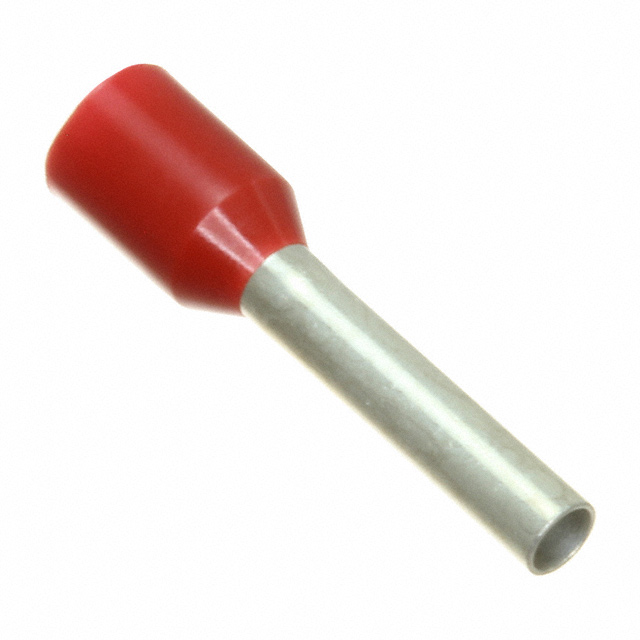

CONN FERRULE DIN 16AWG RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-966066-1
ActiveTE Connectivity AMP Connectors
CONN FERRULE DIN 16AWG RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-966066-1 | 966066 Series |
|---|---|---|
| Color | Red | Gray, Red, White |
| Insulation | Insulated | Insulated |
| Length - Overall [x] | 16 mm | 10 - 16 mm |
| Length - Pin [x] | 10 mm | 6 - 10 mm |
| Size | 16 AWG | 0.5 - 26 AWG |
| Size | 1.5 mm˛ | 0.14 - 1.5 mm² |
| Style | DIN | DIN |
| Type | Single Wire | Single Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 10 | $ 0.17 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
966066 Series
CONN FERRULE DIN 26AWG GRAY
| Part | Size | Size | Length - Pin [x] | Insulation | Type | Length - Overall [x] | Color | Style |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 966066-5 | 0.14 mm² | 26 AWG | 6 mm | Insulated | Single Wire | 10 mm | Gray | DIN |
TE Connectivity AMP Connectors 1-966066-1 | 1.5 mm˛ | 16 AWG | 10 mm | Insulated | Single Wire | 16 mm | Red | DIN |
TE Connectivity AMP Connectors 966066-9 | 0.75 mm² | 18 AWG | 8 mm | Insulated | Single Wire | 14 mm | White | DIN |
TE Connectivity AMP Connectors 966066-7 | 0.5 mm², 20 AWG | 8 mm | Insulated | Single Wire | 14 mm | DIN |
Description
General part information
966066 Series
Red Wire Ferrule Connector DIN 16 AWG (1.50mm˛) Single Wire
