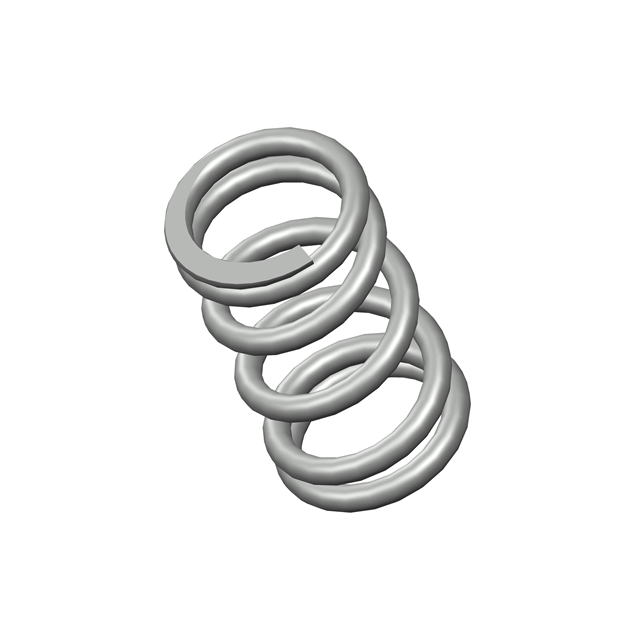

A11-22CS

Active

Century Spring Corp

COMP O= .172,L= .31,W= .023

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A11-22CS

Active

Century Spring Corp

COMP O= .172,L= .31,W= .023

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A11-22CS	A11 Series

Diameter - Inside [diameter]	0.126 in	0.091 - 0.531 in
Diameter - Inside [diameter]	3.2 mm	2.31 - 13.49 mm
Diameter - Outside [diameter]	4.37 mm	3.18 - 15.06 mm
Diameter - Outside [diameter]	0.172 in	0.125 - 0.593 in
End Style	Ground, Closed	Ground, Closed
Finish	Gold Iridite	None, Gold Iridite
Free Length	0.31 in	0.31 - 1.25 in
Free Length	7.87 mm	0.22 - 31.75 mm
Free Length	-	34.04 mm
Free Length	-	1.34 in
Free Length	-	1.38 "
Free Length	-	35.05 mm
Load	-	15 lbs
Material	Music Wire	Stainless Steel, Music Wire, Spring Steel, Phosphor Bronze
Rate	32 lbs/in	0.94 - 82 lbs/in
Wire Diameter	0.023 in	0.016 - 0.052 "
Wire Diameter	0.58 mm	0.41 - 1.32 mm
Wire Diameter	-	0.024 "
Wire Diameter	-	0.43 - 1.22 mm
Wire Diameter	-	0.017 - 0.048 "

A11 Series

COMP O= .125,L= .75,W= .016

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Free Length	Free Length	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter	Wire Diameter	Finish	Rate	End Style	Wire Diameter	Load	Free Length [custom]	Free Length [custom]	Wire Diameter [diameter]	Wire Diameter [diameter]
Century Spring Corp A11-15CS	2.36 mm	0.093 in	0.75 in	19.05 mm	Stainless Steel	0.125 in	3.18 mm	0.41 mm	0.016 "	None	3.9 lbs/in	Closed, Ground
Century Spring Corp A11-16CS	6.81 mm	0.268 in	0.63 in	16 mm	Stainless Steel	0.36 in	9.14 mm	1.17 mm	0.046 in	None	47 lbs/in	Closed, Ground
Century Spring Corp A11-65CS	10.67 mm	0.42 in	0.81 in	20.57 mm	Stainless Steel	0.468 in	11.89 mm	0.61 mm		None	0.94 lbs/in	Closed	0.024 "
Century Spring Corp A11-22CS	3.2 mm	0.126 in	0.31 in	7.87 mm	Music Wire	0.172 in	4.37 mm	0.58 mm	0.023 in	Gold Iridite	32 lbs/in	Closed, Ground
Century Spring Corp A11-2CS					Spring Steel	0.33 in	8.38 mm	1.32 mm	0.052 in	None	29 lbs/in			15 lbs
Century Spring Corp A11-10CS	5.33 mm	0.21 in	0.47 in	11.94 mm	Stainless Steel	0.296 in	7.52 mm	1.09 mm	0.043 "	None	67 lbs/in	Closed, Ground
Century Spring Corp A11-9CS	3.4 mm	0.134 in			Phosphor Bronze	0.188 "	4.78 mm			None	6.5 lbs/in	Closed			34.04 mm	1.34 in	0.69 mm	0.027 "
Century Spring Corp A11-11CS	2.31 mm	0.091 in	0.38 in	9.65 mm	Stainless Steel	0.125 in	3.18 mm			None	11 lbs/in	Closed, Ground					0.43 mm	0.017 "
Century Spring Corp A11-56CS	5.46 mm	0.215 in	1.25 in	31.75 mm	Spring Steel	0.281 in	7.14 mm	0.84 mm	0.033 in	None	9.3 lbs/in	Closed, Ground
Century Spring Corp A11-12CS	10.36 mm	0.408 in	1.06 in	26.92 mm	Stainless Steel	0.468 in	11.89 mm	0.76 mm	0.03 in	None	2.5 lbs/in	Closed, Ground

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.45
		50	$ 1.37
		150	$ 1.29
		300	$ 1.22
		500	$ 1.08

Description

General part information

A11 Series

COMP O= .172,L= .31,W= .023
