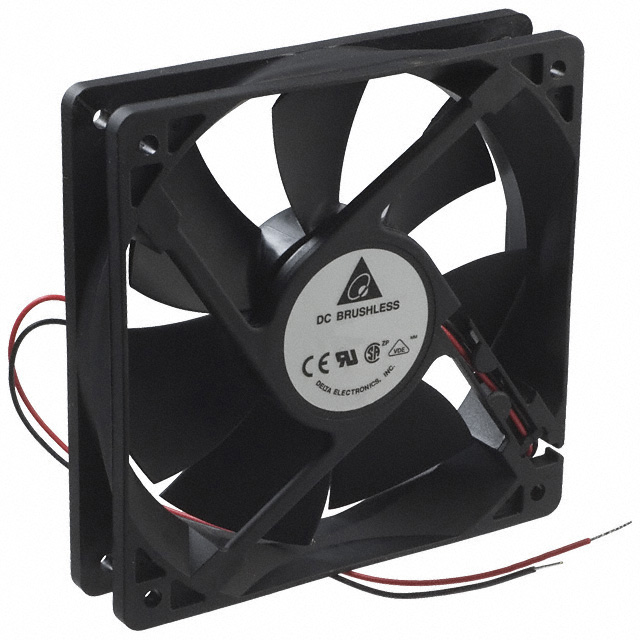

AFB1224SH
ActiveDelta Electronics
DC AXIAL FAN, 24 V, SQUARE, 120 MM, 25.4 MM, BALL BEARING, 113.11 CFM
Deep-Dive with AI
Search across all available documentation for this part.
AFB1224SH
ActiveDelta Electronics
DC AXIAL FAN, 24 V, SQUARE, 120 MM, 25.4 MM, BALL BEARING, 113.11 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB1224SH |
|---|---|
| Air Flow | 3.17 m³/min |
| Air Flow | 113.1 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.28 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 46.5 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 6.72 W |
| RPM | 3400 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 107.1 Pa |
| Static Pressure | 0.43 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 198 g |
| Weight | 0.437 lb |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AFB1224SH
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 113.1 CFM (3.17m³/min) 2 Wire Leads
