1550 WY005

Active

ALPHA WIRE

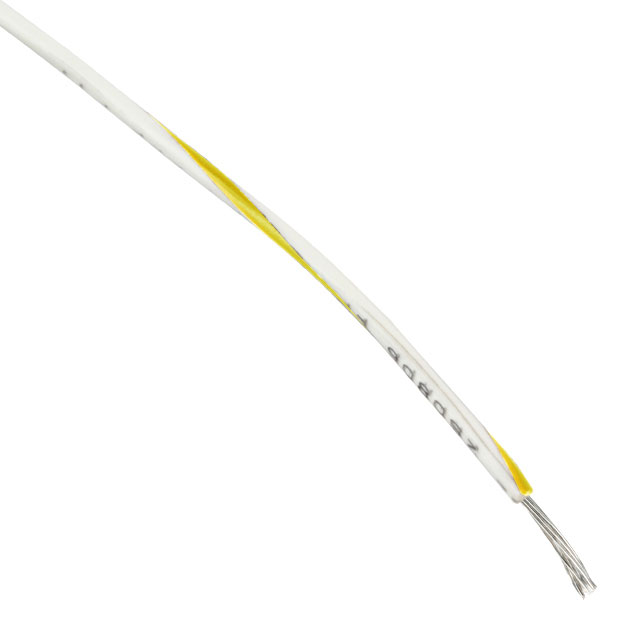

HOOK-UP STRND 24AWG WHT/YEL 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog Alpha Wire Print Notification

1550 WY005

Active

ALPHA WIRE

HOOK-UP STRND 24AWG WHT/YEL 100'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog Alpha Wire Print Notification

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 55.36
		3	$ 51.32
		5	$ 48.54
		10	$ 46.01
		25	$ 42.72
		50	$ 40.45
		100	$ 38.17

Description

General part information

1550 Series

24 AWG Hook-Up Wire 7/32 White, Yellow Stripe 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet

Alpha Wire Print Notification

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1550 WY005	1550 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	1.42 mm	1.42 mm
Jacket (Insulation) Diameter [diameter]	0.056 in	0.056 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in	0.016 in
Jacket (Insulation) Thickness	0.41 mm	0.41 mm
Jacket Color	White, Yellow Stripe	White, Brown Stripe, White, Violet Stripe, Violet, White, Black Stripe, Brown, Red, Slate, White, Yellow Stripe, Green
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Qualification	MIL-W-76B Type MW	MIL-W-76B Type MW
Voltage	1000 V	1000 V
Wire Gauge	24 AWG	24 AWG

1550 Series

HOOKUP STRND 24AWG WHITE/BROWN

Part	Conductor Strand [custom]	Conductor Strand [custom]	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Length	Length	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 1550 WN001	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	1000 V	White, Brown Stripe	1.42 mm	0.056 in
ALPHA WIRE 1550 WG005	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)			1000 V		1.42 mm	0.056 in	30.5 m	100 ft
ALPHA WIRE 1550 WV005	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)			1000 V	White, Violet Stripe	1.42 mm	0.056 in	30.5 m	100 ft
ALPHA WIRE 1550 WN005	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)			1000 V	White, Brown Stripe	1.42 mm	0.056 in	30.5 m	100 ft
ALPHA WIRE 1550 WV001	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	1000 V	White, Violet Stripe	1.42 mm	0.056 in
ALPHA WIRE 1550 WG001	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	1000 V		1.42 mm	0.056 in
ALPHA WIRE 1550 VI001	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	1000 V	Violet	1.42 mm	0.056 in
ALPHA WIRE 1550 WB005	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)			1000 V	White, Black Stripe	1.42 mm	0.056 in	30.5 m	100 ft
ALPHA WIRE 1550 BR005	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)			1000 V	Brown	1.42 mm	0.056 in	30.5 m	100 ft
ALPHA WIRE 1550 RD005	32 AWG	7	MIL-W-76B Type MW	-40 °C	80 C	Hook-Up	0.016 in	0.41 mm	Copper, Tinned	24 AWG	Poly-Vinyl Chloride (PVC)			1000 V	Red	1.42 mm	0.056 in	30.5 m	100 ft
