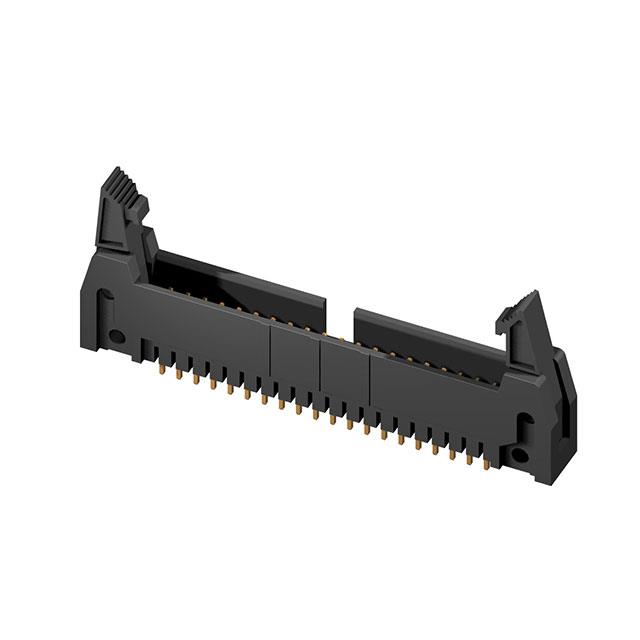

CH88162C100-B
ActiveCvilux USA
2.54MM(.100) DUAL ROW BOARD MOUN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCH8853SA
CH88162C100-B
ActiveCvilux USA
2.54MM(.100) DUAL ROW BOARD MOUN
Deep-Dive with AI
DocumentsCH8853SA
Technical Specifications
Parameters and characteristics for this part
| Specification | CH88162C100-B |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.658 " |
| Insulation Height | 16.71 mm |
| Insulation Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2040 | $ 0.38 | |
Description
General part information
CH88162C100-B
Connector Header Through Hole 16 position 0.100" (2.54mm)
