HDS-P832794
ObsoletePeerless by Tymphany
SPEAKR 6.71OHM 50W TOP PT 88.8DB
HDS-P832794
ObsoletePeerless by Tymphany
SPEAKR 6.71OHM 50W TOP PT 88.8DB
Description
General part information
HDS-P832794

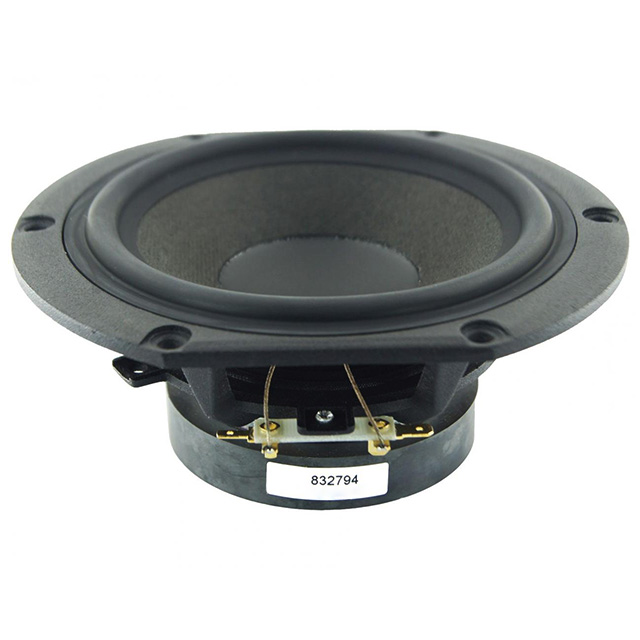

6.71 Ohms Woofer Speaker 50 W 20 Hz ~ 20 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | HDS-P832794 |
|---|---|
| Efficiency - dBA | 88.8 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 69.18 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 20 Hz |
| Height - Seated (Max) | 2.654 in |
| Impedance | 6.71 Ohms |
| Material - Cone | Meta-Aramid |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 50 VA |
| Shape | Round |
| Size / Dimension Diameter | 5.512 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Woofer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
