Description
General part information
A32.255HGB.003EM

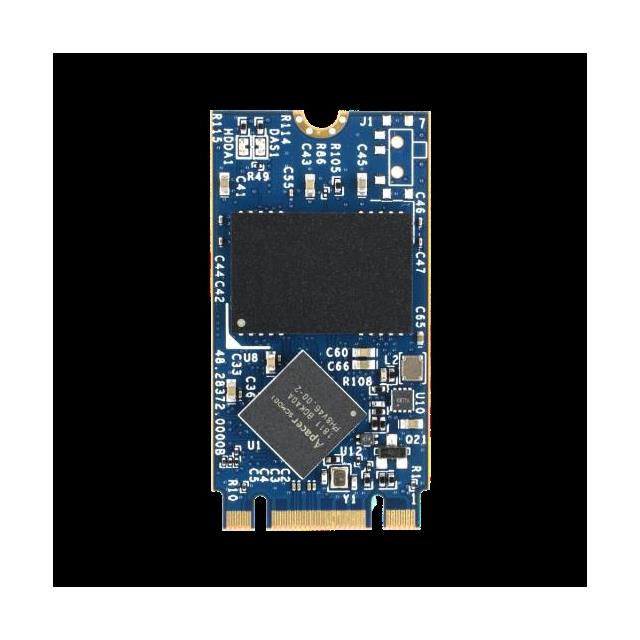

Solid State Drive (SSD) FLASH - NAND (TLC) 120GB SATA III M.2 Module 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | A32.255HGB.003EM |
|---|---|
| Current - Max | 300 mA |
| Form Factor | M.2 Module |
| Memory Size | 120 GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 3.8 mm |
| Size / Dimension Length | 42 mm |
| Size / Dimension Width | 22 mm |
| Speed - Read | 440 MB/s |
| Speed - Write | 190 MB/s |
| Type | SATA III |
| Voltage - Supply | 3.3 V |
