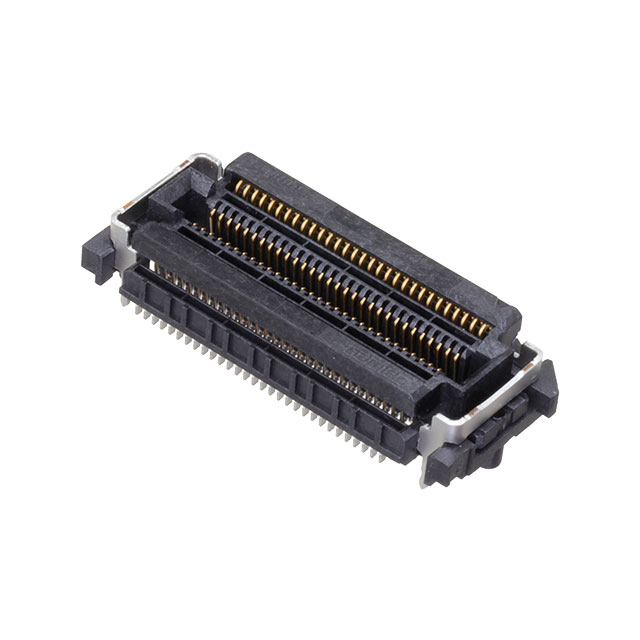

FS5-30-04.0-L-DV-TH-TR
ActiveSamtec Inc.
CONN SOCKET 60POS SMD GALVANIZED
Deep-Dive with AI
Search across all available documentation for this part.
FS5-30-04.0-L-DV-TH-TR
ActiveSamtec Inc.
CONN SOCKET 60POS SMD GALVANIZED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FS5-30-04.0-L-DV-TH-TR |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide |
| Height Above Board | 4.4 mm |
| Height Above Board | 0.173 in |
| Mated Stacking Heights | 7 mm, 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.33 | |
| 10 | $ 7.16 | |||
| 25 | $ 6.46 | |||
| 50 | $ 5.99 | |||
| 100 | $ 5.57 | |||
| Digi-Reel® | 1 | $ 9.33 | ||
| 10 | $ 7.16 | |||
| 25 | $ 6.46 | |||
| 50 | $ 5.99 | |||
| 100 | $ 5.57 | |||
| Tape & Reel (TR) | 275 | $ 5.02 | ||
| 550 | $ 4.68 | |||
| 825 | $ 4.50 | |||
| 1375 | $ 4.29 | |||
| 1925 | $ 4.15 | |||
Description
General part information
FS5-30 Series
60 Position Connector Socket, Center Strip Contacts Surface Mount Gold
