ET60S-D02-0-00-D02-L-VP-S

Active

Samtec Inc.

.100" EXTREME TEN60POWER 60 AMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ET60S Datasheet +2

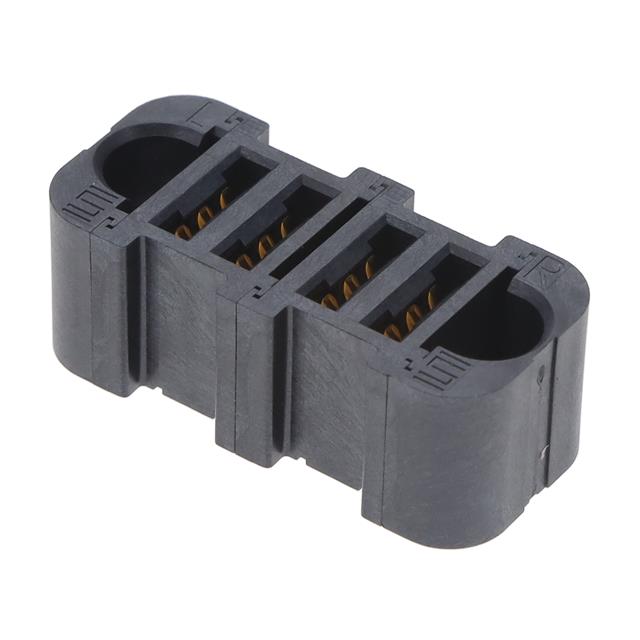

ET60S-D02-0-00-D02-L-VP-S

Active

Samtec Inc.

.100" EXTREME TEN60POWER 60 AMP

Deep-Dive with AI

DocumentsDatasheet ET60S Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ET60S-D02-0-00-D02-L-VP-S

Color	Black
Connector Style	EXTreme Ten60Power
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Layout, Typical	4 Power
Current Rating (Amps)	60 A
Features	Mating Guide, Board Guide
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5.5 mm
Pitch [x]	0.217 in
Termination	Press-Fit
Voltage Rating	250 VDC

ET60S-D02 Series

Part	Contact Finish	Connector Type	Connector Style	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical	Features	Number of Positions Loaded	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Current Rating (Amps)
Samtec Inc. ET60S-D02-0-00-D03-L-R1-S	Gold	Receptacle Female Blade Sockets	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Solder	Through Hole Right Angle	10 Áin	0.25 Ám	5 Power	Board Guide Mating Guide	All
Samtec Inc. ET60S-D02-3-08-000-S-R1-S	Gold	Blade Sockets Female Sockets Receptacle	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Solder	Through Hole Right Angle	30 Áin	0.76 Ám		Board Guide Mating Guide	All	2	24	26	2.54 mm	0.1 in	3
Samtec Inc. ET60S-D02-3-08-D06-L-VP-S	Gold	Blade Sockets Female Sockets Receptacle	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Press-Fit	Through Hole	10 Áin	0.25 Ám		Board Guide Mating Guide	All	8	24		2.54 mm	0.1 in	3
Samtec Inc. ET60S-D02-0-00-000-S-R1-S	Gold	Receptacle Female Blade Sockets	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Solder	Through Hole Right Angle	30 Áin	0.76 Ám	2 Power	Board Guide Mating Guide	All			2
Samtec Inc. ET60S-D02-3-08-D03-L-VP-S	Gold	Blade Sockets Female Sockets Receptacle	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Press-Fit	Through Hole	10 Áin	0.25 Ám		Board Guide Mating Guide	All	5	24	29	2.54 mm	0.1 in	3
Samtec Inc. ET60S-D02-3-08-D04-L-V1-S	Gold	Blade Sockets Female Sockets Receptacle	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Solder	Through Hole	10 Áin	0.25 Ám		Board Guide Mating Guide	All	6	24	30	2.54 mm	0.1 in	3
Samtec Inc. ET60S-D02-0-00-D02-L-VP-S	Gold	Receptacle Female Blade Sockets	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Press-Fit	Through Hole	10 Áin	0.25 Ám	4 Power	Board Guide Mating Guide	All			4	5.5 mm	0.217 in		60 A
Samtec Inc. ET60S-D02-3-08-D02-L-VP-S	Gold	Blade Sockets Female Sockets Receptacle	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Press-Fit	Through Hole	10 Áin	0.25 Ám		Board Guide Mating Guide	All	4	24	28	2.54 mm	0.1 in	3
Samtec Inc. ET60S-D02-0-00-D02-S-V1-S	Gold	Receptacle Female Blade Sockets	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Solder	Through Hole	30 Áin	0.76 Ám	4 Power	Board Guide Mating Guide	All			4
Samtec Inc. ET60S-D02-3-08-D06-L-V1-S	Gold	Blade Sockets Female Sockets Receptacle	EXTreme Ten60Power	250 VDC	-40 °C	105 ░C	Black	Solder	Through Hole	10 Áin	0.25 Ám		Board Guide Mating Guide	All	8	24		2.54 mm	0.1 in	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.19
		10	$ 4.75
		25	$ 4.28
		50	$ 3.97
		100	$ 3.88

Description

General part information

ET60S-D02 Series

4 Connector Receptacle, Female Blade Sockets Through Hole Black EXTreme Ten60Power

ET60S-D02-0-00-D02-L-VP-S

Deep-Dive with AI

ET60S-D02-0-00-D02-L-VP-S

Deep-Dive with AI

Technical Specifications

ET60S-D02 Series

Pricing

Description

ET60S-D02 Series

Documents

Datasheet

ET60S Datasheet

ET60S Series Other Related Documents 03

ET60S Series Other Related Documents 01

ET60S-D02 Series
