0711069
ActivePhoenix Contact

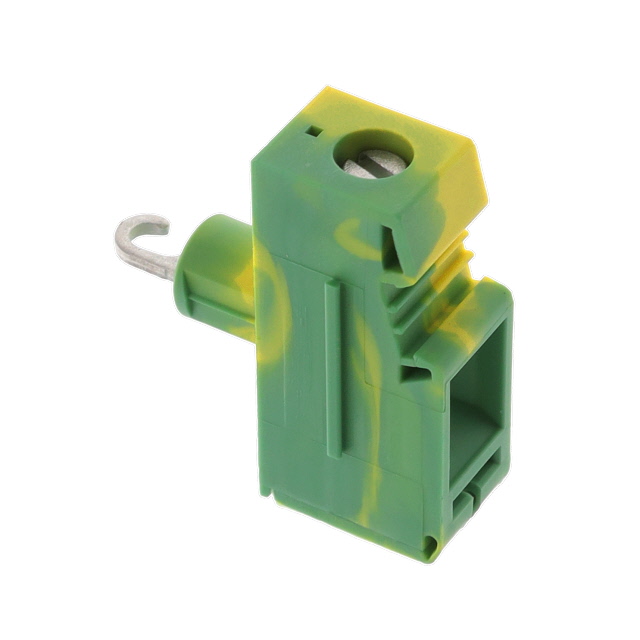

TERM BLK SCREW CLAMP 1POS GREEN
0711069
ActivePhoenix Contact
TERM BLK SCREW CLAMP 1POS GREEN
Description
General part information
0711069
1 Position Terminal Block Bolt/Screw Clamp - Wire Entry 90° to Panel Green, Yellow
Technical Specifications
Parameters and characteristics for this part
| Specification | 0711069 |
|---|---|
| Color | Yellow, Green |
| Front Panel Wire Connection (Method) | Bolt, Screw Clamp |
| Number of Levels | 1 |
| Panel Mount Count | 2 Piece |
| Panel Mount Type | 2 Piece |
| Panel Thickness (Max) | 0.177 in |
| Panel Thickness (Min) | 0.039 in |
| Positions Per Level | 1 |
| Rear Panel Wire Connection | PCB Pins |
| Rear Panel Wire Entry Orientation | Straight |
| Width | 0.394 in |
| Wire Entry Angle (to Panel) | 90 ° |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 8 AWG |
