379-006-540-101
ActiveEDAC Inc.

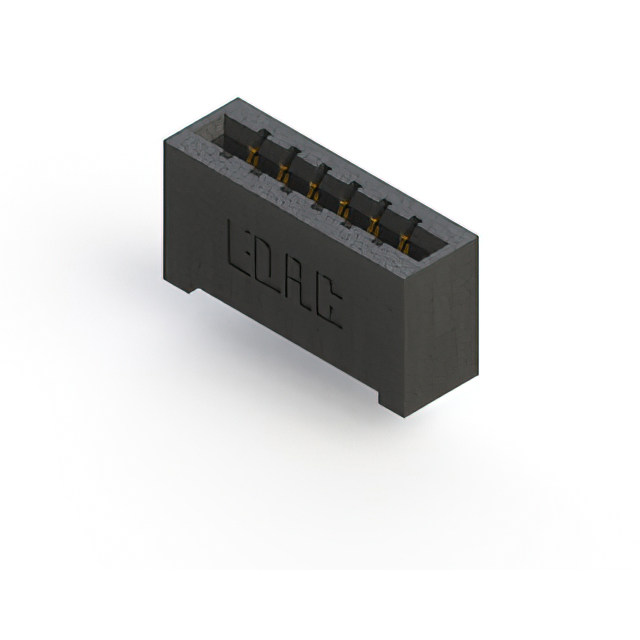

CONN EDGE SINGLE FML 6POS 0.150
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
379-006-540-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 6POS 0.150
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 379-006-540-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
379-006 Series
| Part | Number of Rows | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Type | Contact Finish | Material - Insulation | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Gender | Card Type | Read Out | Mounting Type | Termination | Color | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Solder | Black | 6 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Solder | Black | 6 | |||
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Wire Wrap | Black | 6 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in |
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Wire Wrap | Black | 6 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Solder | Black | 6 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Wire Wrap | Black | 6 | |||
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Solder | Black | 6 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " |
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Wire Wrap | Black | 6 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " |
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Wire Wrap | Black | 6 | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | 1 | 6 | 1 | Cantilever | Gold | Polyester Thermoplastic | 0.15 in | 3.81 mm | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Female | Non Specified - Single Edge | Single | Through Hole | Solder | Black | 6 | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 5.23 | |
Description
General part information
379-006 Series
6 Position Female Connector Non Specified - Single Edge Gold 0.150" (3.81mm) Black
