Description
General part information
85000-12

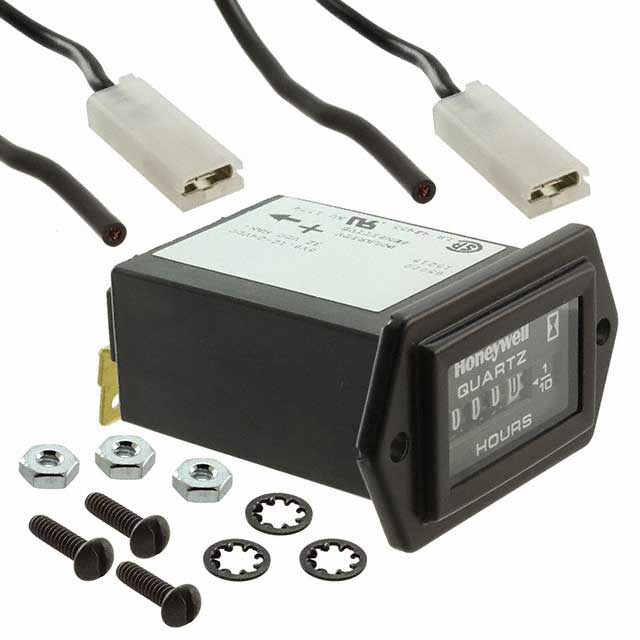

Time Counter (Hour Meter) 5 ~ 110VDC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 85000-12 |
|---|---|
| Display Characters - Height | 0.12 in |
| Display Type | Decade Wheel |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mounting Type | Panel Mount |
| Number of Characters Per Row | 5 characters |
| Operating Mode | Up |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Quick Connect Size (0.250") | 0.25 in |
| Termination Style | Quick Connect |
| Time Format (Hours) | 9999.9 hrs |
| Type | Time Counter (Hour Meter) |
| Voltage - Supply (Maximum) | 110 VAC |
| Voltage - Supply (Minimum) | 5 V |
