MS3116P10-6S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3116P10-6S | MS3116P10 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Potted | Coupling Nut, Potted |
| Grade | Military | Military |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.97 | |
MS3116P10 Series
CONN PLUG FMALE 6P GOLD SLDR CUP
| Part | Shell Finish | Shielding | Shell Material | Insert Material | Fastening Type | Features | Mounting Type | Qualification | Grade | Color | Shell Size - Insert | Contact Material | Connector Type | Number of Positions | Orientation | Primary Material | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116P10-6S | Olive Drab Chromate over Cadmium | Unshielded | Aluminum | Neoprene | Bayonet Lock | Coupling Nut, Potted | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Military | Olive Drab | 10-6 | Copper Alloy | Female Sockets, Plug | 6 | N | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | -55 °C | 125 °C | Gold |
Amphenol Industrial Operations MS3116P10-6P | Olive Drab Chromate over Cadmium | Unshielded | Aluminum | Neoprene | Bayonet Lock | Coupling Nut, Potted | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Military | Olive Drab | 10-6 | Copper Alloy | Male Pins, Plug | 6 | N | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | -55 °C | 125 °C | Gold |
Description
General part information
MS3116P10 Series

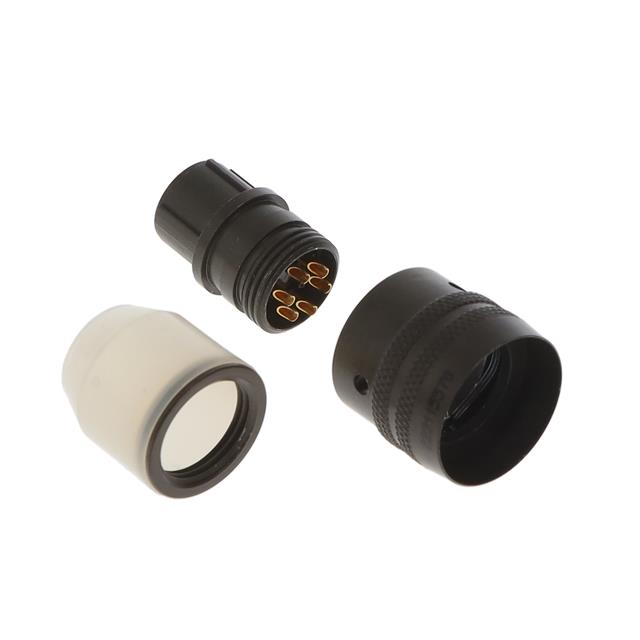

6 Position Circular Connector Plug, Female Sockets Solder Cup
