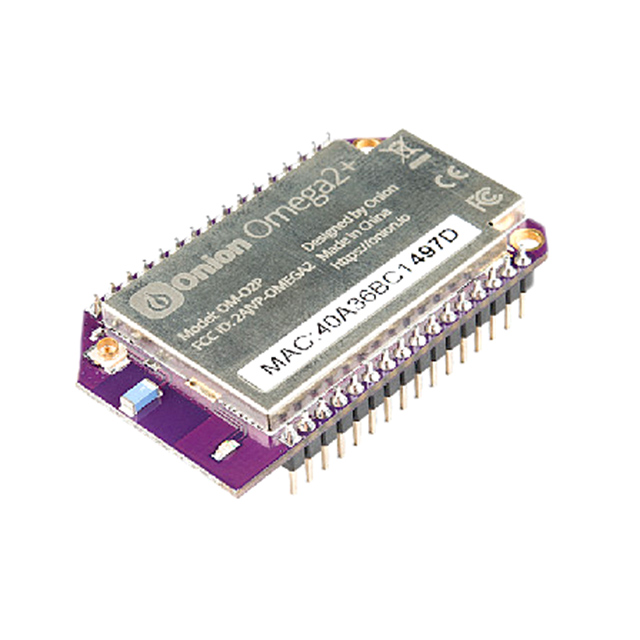

OM-O2P

Active

Onion Corporation

RF TXRX MOD WIFI CHIP TH

Search across all available documentation for this part.

Active

Onion Corporation

RF TXRX MOD WIFI CHIP TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OM-O2P	OM-O2 Series

Antenna Type	Chip	Chip, Antenna Not Included, U.FL
Data Rate	150 Mbps	150 Mbps
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	16 - 64 MB
Memory Size [custom]	32 MB	32 MB
Memory Size [custom]	128 MB	128 MB
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Package / Case	Module	Module
Protocol	802.11b/g/n	802.11b/g/n
RF Family/Standard	WiFi	WiFi
Serial Interfaces	Ethernet, PWM, I2C, SPI, SDIO, I2S, UART, USB	Ethernet, PWM, I2C, SPI, SDIO, I2S, UART, USB
Utilized IC / Part	MT7688AN	MT7688AN
Voltage - Supply	3.3 V	3.3 V

RF TXRX MOD WIFI CHIP TH

Part	Package / Case	Mounting Type	Voltage - Supply	RF Family/Standard	Data Rate	Memory Size [custom]	Memory Size [custom]	Protocol	Utilized IC / Part	Antenna Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Serial Interfaces	Frequency	Memory Size
Onion Corporation OM-O2P	Module	Through Hole	3.3 V	WiFi	150 Mbps	32 MB	128 MB	802.11b/g/n	MT7688AN	Chip	55 °C	-10 °C	Ethernet, I2C, I2S, PWM, SDIO, SPI, UART, USB	2.4 GHz
Onion Corporation OM-O2S	Module	Surface Mount	3.3 V	WiFi	150 Mbps			802.11b/g/n	MT7688AN	Antenna Not Included, U.FL	55 °C	-10 °C	Ethernet, I2C, I2S, PWM, SDIO, SPI, UART, USB	2.4 GHz	16 MB, 64 MB
Onion Corporation OM-O2SP	Module	Surface Mount	3.3 V	WiFi	150 Mbps	32 MB	128 MB	802.11b/g/n	MT7688AN	Antenna Not Included, U.FL	55 °C	-10 °C	Ethernet, I2C, I2S, PWM, SDIO, SPI, UART, USB	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.31

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Chip Through Hole
