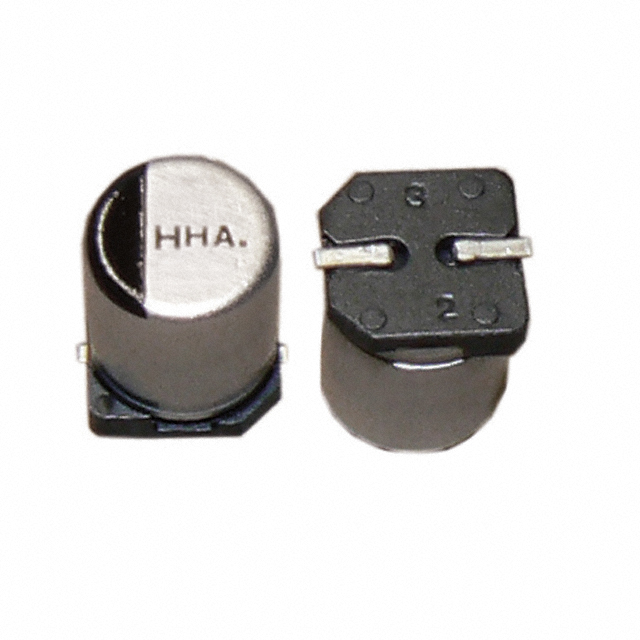

AHA336M25C12T-F
NRNDCornell Dubilier Knowles
CAP ALUM 33UF 20% 25V SMD
AHA336M25C12T-F
NRNDCornell Dubilier Knowles
CAP ALUM 33UF 20% 25V SMD
Description
General part information
AHA336M25C12T-F
33 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 10Ohm @ 120Hz 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AHA336M25C12T-F |
|---|---|
| Applications | Bypass, Decoupling, Automotive |
| Capacitance | 33 µF |
| ESR (Equivalent Series Resistance) | 10 Ohm |
| Height - Seated (Max) | 0.213 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 42 mA, 71.4 mA |
| Size / Dimension Diameter | 0.197 in |
| Surface Mount Land Length | 0.209 in |
| Surface Mount Land Width | 0.209 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
